Name: Neutrik NF2C-B/2 Pair of Professional Phono Plug (RCA)- red &amp; black
SKU: TLZ-7613187001109
Price: 10.000 OMR
Availability: InStock

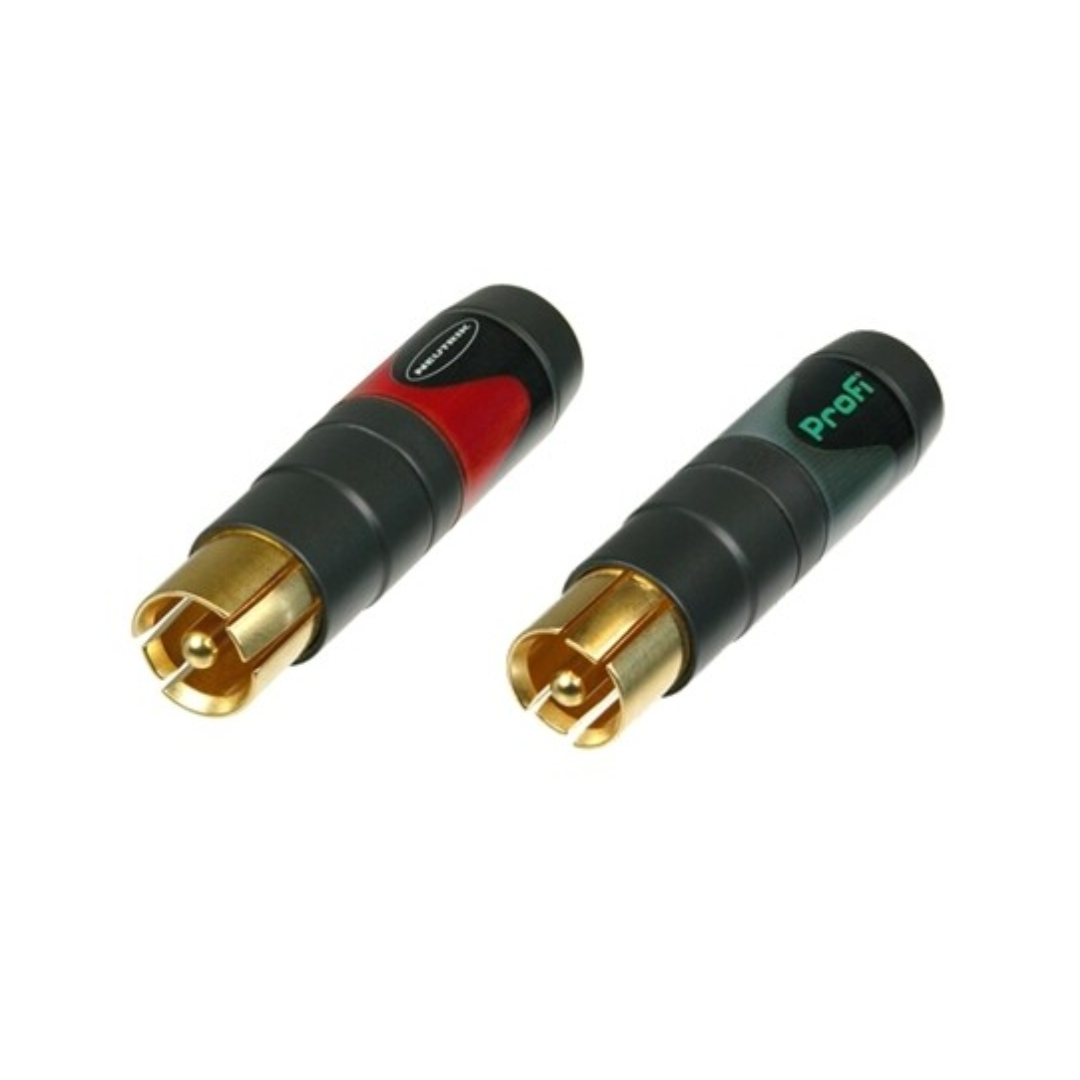

Neutrik NF2C-B/2 Pair of Professional Phono Plug (RCA)- red & black

Talentz Savings: OMR 2.000 Retail Price: OMR 12.000

OMR 10.000

Features:

Makes ground before signal contact and breaks signal before ground
No more disturbing noise and broken speaker cones
Precisely machined to our demanding quality standards
Neutrik unique chuck type strain relief
Gold plated contacts
Sleek barrel with soft touch surface and coloured shrink sleeve
Improved ground solder lug for ease soldering

In stock (can be backordered)

SKU: TLZ-7613187001109 Categories: Accessories, Connectors Product ID: 28746

Description

Pair of professional `Phono Plug` (`RCA`- or `CINCH`- type) – marked red and black.

Including 2 x 2 strain reliefs for cable O.D. 3.0 mm to 7.3 mm. Additional strain relief for cable O.D. up to 8.0 mm available as accessory.

Technical Information

Product
Title	NF2C-B/2
Connection Type	Profi
Gender	male

Electrical
Capacitance between contacts	≤ 7 pF
Contact resistance	>10G mΩ
Dielectric strength	1,5 kVdc
Insulation resistance	> 5 GΩ
Rated current per contact	depends on mating connector / A
Rated voltage	< 50 V

Mechanical
Cable O.D.	3.0 – 7.3 mm
Lifetime	> 2000 mating cycles
Wiresize	1,5 mm²
Wiresize	16 AWG
Wiring	Solder contacts

Material
Contact plating	5 µm Au over 5 µm Ni
Contacts	Brass (CuZn39Pb3)
Insert	PBTP 20 % GR
Shell	Brass (CuZn39Pb3)
Strain relief	Polyacetal (POM)

Environmental
Flammability	UL 94 HB
Standard compliance	IEC 601-14
Protection class	IP 40
Solderability	Complies with IEC 68-2-20
Temperature range	-30 °C to +80 °C
