Description

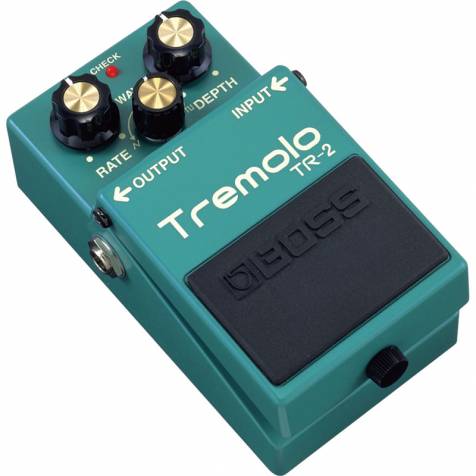

TR-2
The BOSS TR-2 Tremolo is designed to provide guitarists with classic tremolo effects in an easy-to-use compact pedal. Dedicated “Wave,” “Rate,” and “Depth” knobs provide a multitude of effect possibilities.
Specifications:
| Nominal Input Level | -20 dBu |
| Input Impedance | 1 M ohm |
| Nominal Output Level | -20 dBu |
| Output Impedance | 1 k ohm |
| Recommended Load Impedance | 10 k ohms or greater |
| Bypass | Buffered bypass |
| Controls | DEPTH knob RATE knob WAVE knob Pedal switch |
| Indicator | CHECK indicator (Used for indication of check battery) |
| Connectors | INPUT jack: 1/4-inch phone type OUTPUT jack: 1/4-inch phone type DC IN jack |
| Power Supply | Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61) AC adaptor (PSA series: sold separately) |
| Current Draw | 20 mA |
| Accessories | Owner’s manual Leaflet (“USING THE UNIT SAFELY,” “IMPORTANT NOTES,” and “Information”) Carbon-zinc battery (9 V, 6F22) |
| Options (sold separately) | AC adaptor: PSA series |
| SIZE AND WEIGHT | |
|---|---|
| Width | 73 mm 2-7/8 inches |
| Depth | 129 mm 5-1/8 inches |
| Height | 59 mm 2-3/8 inches |
| Weight (including battery) | 400 g 15 oz |
