Description
Simplifies Your Setup

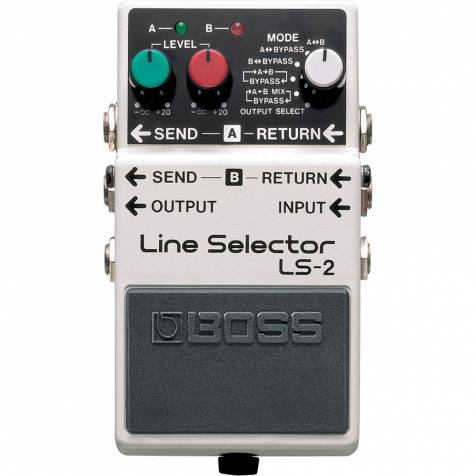

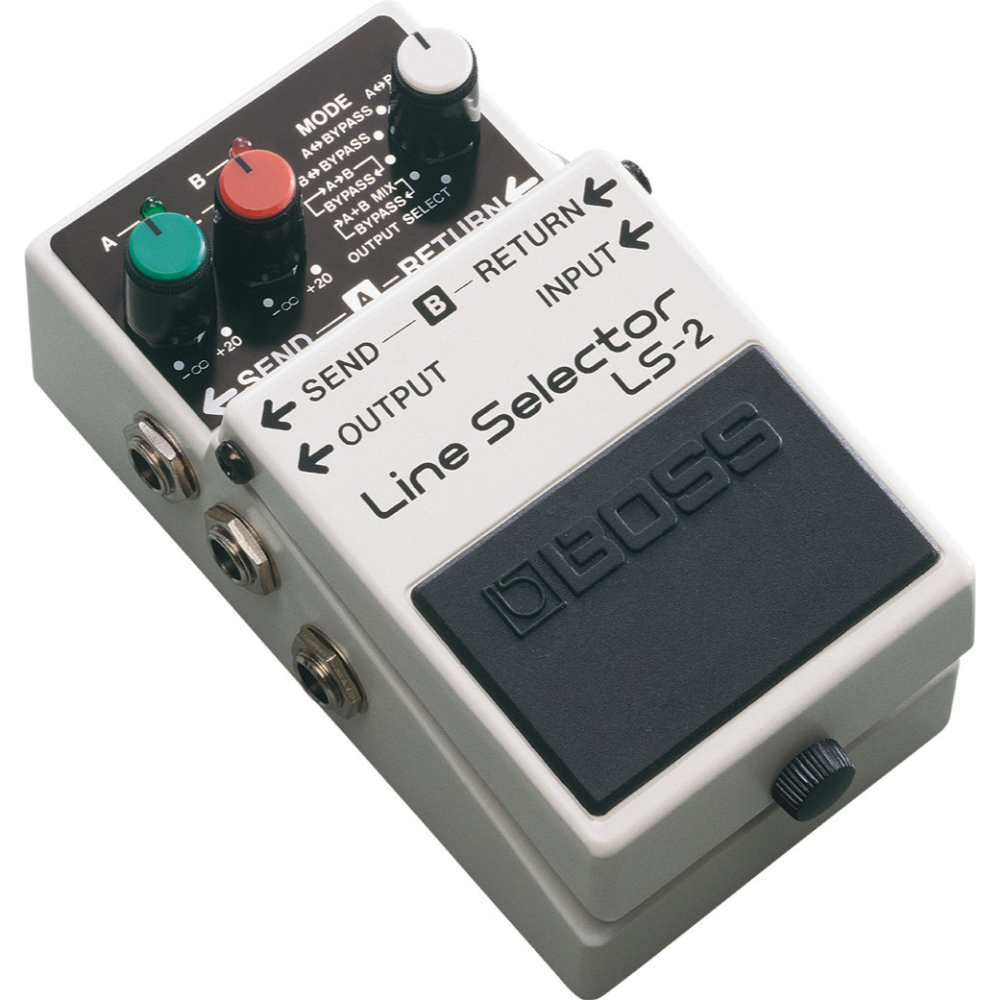

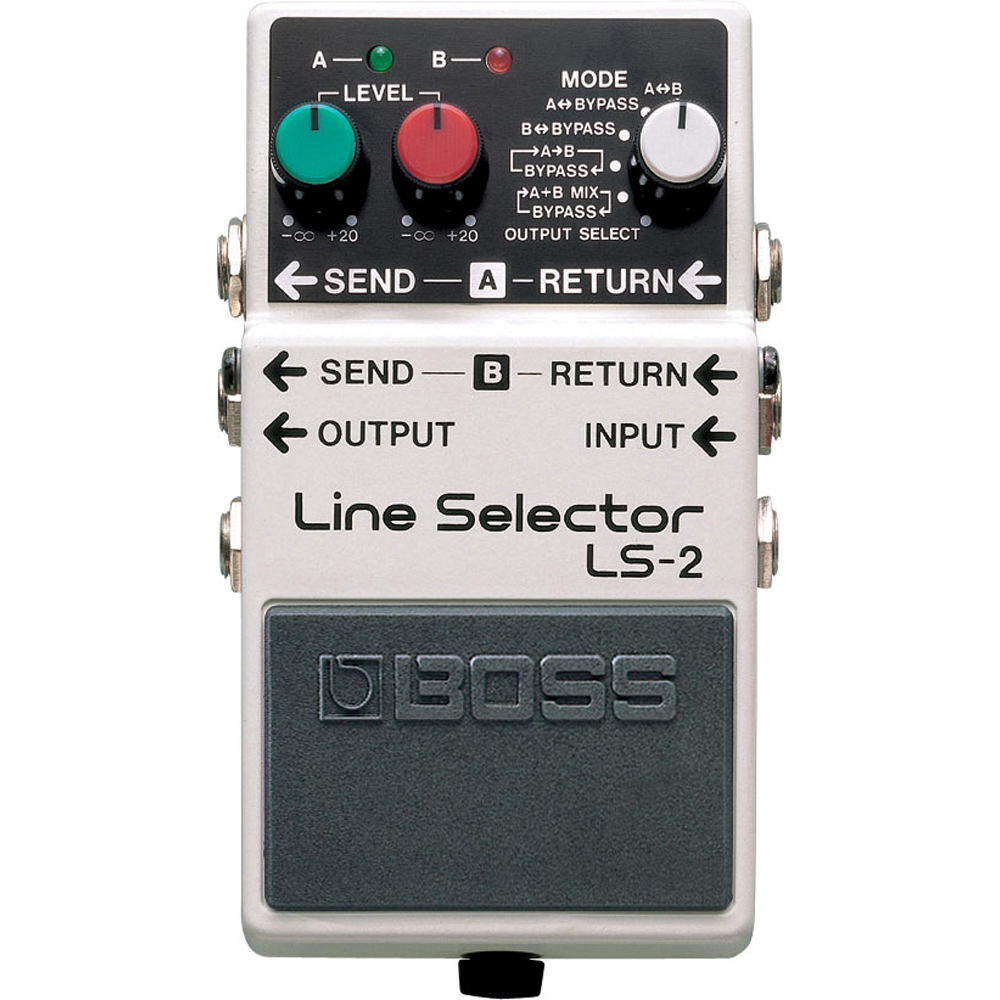

The LS-2 Line Selector pedal represents the easy way to switch settings among several effects devices or amplifiers, or route input and output signals. Two line loops and six looping modes provide a wide variety of applications.
Specifications:
Nominal Input Level:
- -20 dBu
Input Impedance:
- 1 M ohm
Nominal Output Level:
- -20 dBu
Output Impedance:
- 1 k ohms
Recommended Load Impedance:
- 10 k ohms or greater
Bypass:
- Buffered bypass
Controls:
- MODE selector switch
- LEVEL knobs A/B
- Pedal switch
Indicator:
- Line indicator A/B (Used for indication of check battery)
Connectors:
- INPUT jack: 1/4-inch phone type
- SEND jacks A/B: 1/4-inch phone type
- RETURN jacks A/B: 1/4-inch phone type
- OUTPUT jack: 1/4-inch phone type
- DC IN/OUT jack
Power Supply:
- Carbon-zinc battery (9 V, 6F22) or Alkaline battery (9 V, 6LR61)
- AC adaptor (PSA series: sold separately)
Current Draw:
- 25 mA
Expected battery life under continuous use:
- Carbon: Approx. 14 hours
- Alkaline: Approx. 30.5 hours
- * These figures will vary depending on the actual conditions of use.
Accessories:
- Owner’s manual
- Leaflet (“USING THE UNIT SAFELY,” “IMPORTANT NOTES,” and “Information”)
- Carbon-zinc battery (9 V, 6F22)
Options (sold separately):
- AC adaptor: PSA series
Width:
- 73 mm (2-7/8 inches)
Depth:
- 129 mm (5-1/8 inches)
Height:
- 59 mm (2-3/8 inches)
Weight (including battery):
- 410 g (15 oz)
