Description
Cordoba’s First Nylon String Electric Guitar! Years in the making, the Cordoba Stage is a combination of mastery and innovation. Created to bring you the same unplugged acoustic Cordoba sound across all platforms, from studio to stadium. The Stage combines a solid Spruce top with a figured Flamed Maple Veneer for projection*, volume, and a distinctive aesthetic flair.
Full Specs:
| Build | Fusion |
|---|---|
| Construction | Chambered Solid Body |
| Body Top | Solid Spruce W/Flame Maple Veneer *Select production runs contain an Okume stabilizing inner layer. |
| Exclusive | No |
| Family | Cutaway & Electric |
| Does it contain shell? | Yes – MOP |
| Shipper Carton Dimensions | 112 x 43 x 15 (cm) |
| Top Bracing Pattern | Custom 3 pc. Fan |
| Soundhole Diameter | N / A |
| Rosette | N / A |
| Top Purfling Inlay | N / A |
| Back Bracing | Ladder Bracing |
| Back Binding | N / A |
| Side Purfling Inlay | N / A |
| Back Center Strip | N / A |
| Back and Sides Wood | Chambered Mahogany |
| Back Purfling Inlay | N / A |
| Side Purfling Inlay Pattern & Dimensions | N / A |
| Top Purfling Pattern & Dimensions | N / A |
| Tail Strip | N / A |
| Frets to Body | 14 |
| Top Binding | Pau Ferro |
| Rosette Pattern & Dimensions | N / A |
| Back Purfling Inlay Pattern & Dimensions | N / A |
| Neck Material | Mahogany |
| Scale Length | 650mm (25.6″) |
| Compatible Case 1 | N / A |
| Neck Construction | Traditional 3 Piece Neck |
| Neck Joint | Set Neck |
| Neck Shape | C Shape |
| Nut Width | 48mm (1 7/8″) |
| Headplate | Pau Ferro |
| Headstock Logo | Cordoba Arches Logo – Mother-of-Pearl |
| Neck Thickness 1st Fret | 20mm |
| Neck Thickness 9th Fret | 23mm |
| Truss Rod | Dual Action |
| Truss Rod Wrench | 4mm Allen Key |
| Fingerboard Material | Pau Ferro |
| Fingerboard Inlays | N / A |
| Frets Total | 22 |
| pcid | 1 |
| Compatible Case 2 | N / A |
| Compatible Gig Bag 1 | N / A |
| Fingerboard Binding | Pau Ferro (unbound end) |

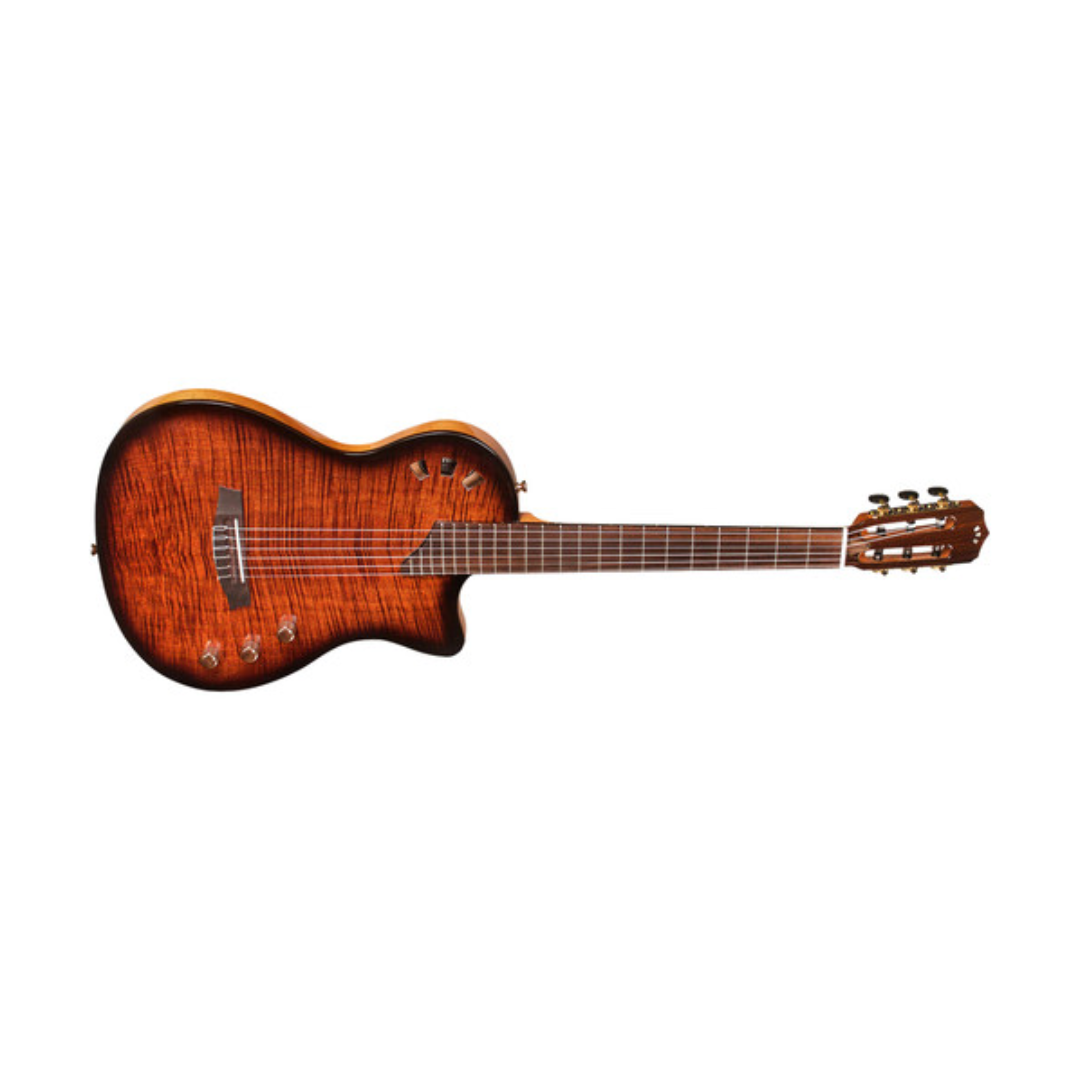

| Color | Edge Burst (EB) |
| Finish | Gloss Polyurethane |
| Fret Dimensions | 2.0mm (W) x 1.1mm (H) |
| Bridge Material | Pau Ferro |
| Saddle Material | Compensated Bone |
| Nut Material | Bone |
| Tuning Machine Buttons | Black |
| Tuning Machine Ratio | 14:1 |
| Tuning | E-A-D-G-B-E |
| Tuning Machines | Cordoba Black and Gold with Black Buttons |
| Pickup Type | Undersaddle Piezo + Body Sensors |
| Replacement Tuning Machine – Treble | 05708 – Cordoba Tuner Blossom BLK/GLD w/EB BS BTN Treble |
| Tap Plate | N / A |
| Electronics | Fishman Stage Pickup System |
| Battery Pack Installation Location | Back |
| Replacement Tuning Machine Button | 03512 – Cordoba Tuner Button Ebony Bisquette EB BS BTN |
| Controls | Master Volume, EQ and Body Blend |
| Battery Pack | Battery Box – 9V |
| Tuning Machines Vendor & Model | Der Jung DJCB1GK-A1B (S3) |
| Replacement Tuning Machine – Bass | 05709 – Cordoba Tuner Blossom BLK/GLD w/EB BS BTN Bass |
| Strings | Savarez Alliance /Cantiga High Tension 510AJ |

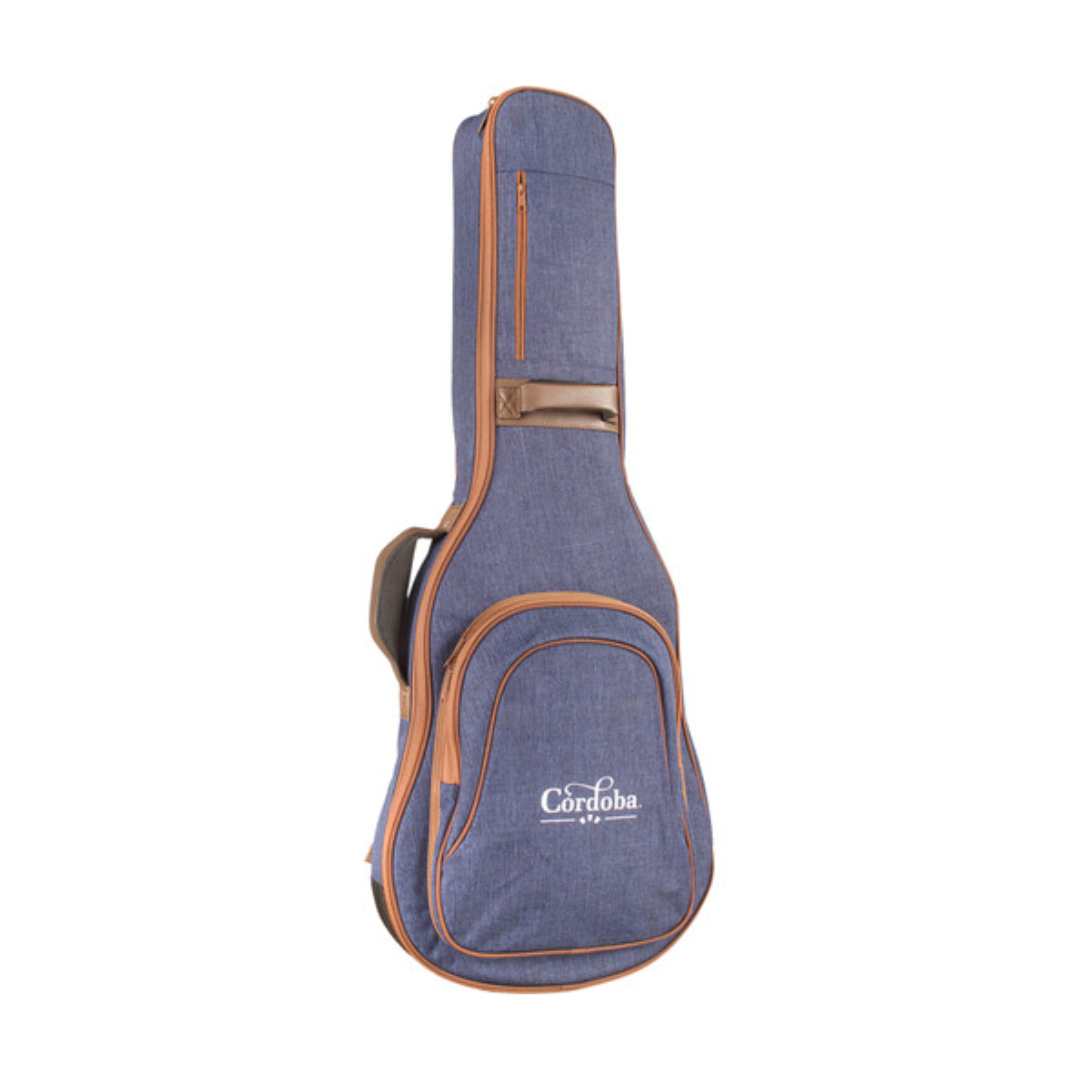

| Included Case | Cordoba Deluxe Gig Bag |
| Upper Bout Width | 270mm (10 5/8″) |
| Number of Strings | 6 |
| Lower Bout Width | 352mm (13 7/8″) |
| Target Instrument Weight | 5 lbs / 2.3 kg |
| Body Depth Upper Bout | 38mm (1 1/2″) |
| Body Depth Lower Bout | 38mm (1 1/2″) |
| Waist Width | 226mm (8 7/8″) |
| Replacement Truss Rod Cover | 05022 – Cordoba Truss Rod Cover Stage Rosewood |
| Replacement Truss Rod Wrench | 008-0000-001 – Truss Rod Wrench 4mm Allen Key |
| Body Length | 457mm (18″) |
| Replacement Gig Bag | 03544 – Cordoba Deluxe Gig Bag Stage BLU/BRN |
| Replacement Other Cover | 05021 – Cordoba Battery Box Ring Stage BLK |
| Replacement Case | N / A |
| Replacement Output Jack Plate | 05018 – Cordoba Jack Plate GLD |
| Replacement Control Cavity Cover | 05020 – Cordoba Control Cavity Cover Stage BLK |
| Replacement Battery Box & Output Jack | N / A |
| Replacement Control Knob | 05017 – Cordoba Knob Walnut w/Indicator Dot Set Screw |
| Replacement Saddle | 01066 – Cordoba Saddle Bone 6 String Guitar Radiused 80mm x 3mm |
| Replacement Pickup & Preamp System | 05016 – Cordoba Pickup Fishman Stage Guitar System Complete |
| Replacement Bridge Pins | N / A |
| Replacement Pickguard | N / A |
| Replacement Strap Button | 05019 – Cordoba Strap Buttons GLD |
| Replacement Nut | 01053 – Cordoba Nut Bone 6 String Guitar 48mm x 5mm |
| Overall Length | 997mm (39 1/4″) |
| Country of Origin | China |
| Compatible Case 3 | N / A |
| Nut String Spacing | 39mm (1 1/2″) |
| Compatible Gig Bag 2 | N / A |
| psid | 4 |
Due to ongoing product development efforts, specifications are subject to change without notice.
