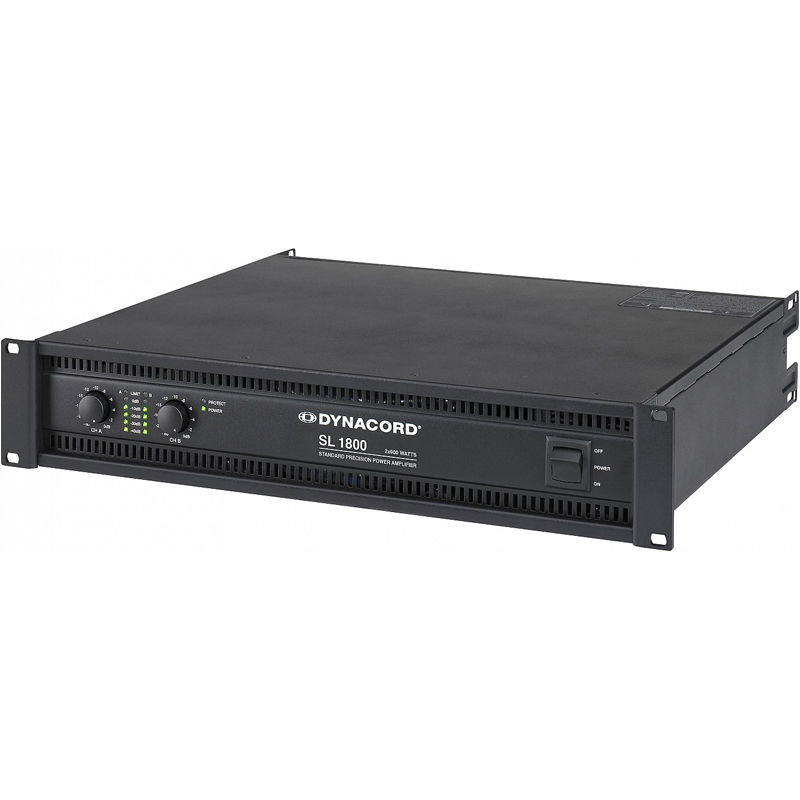

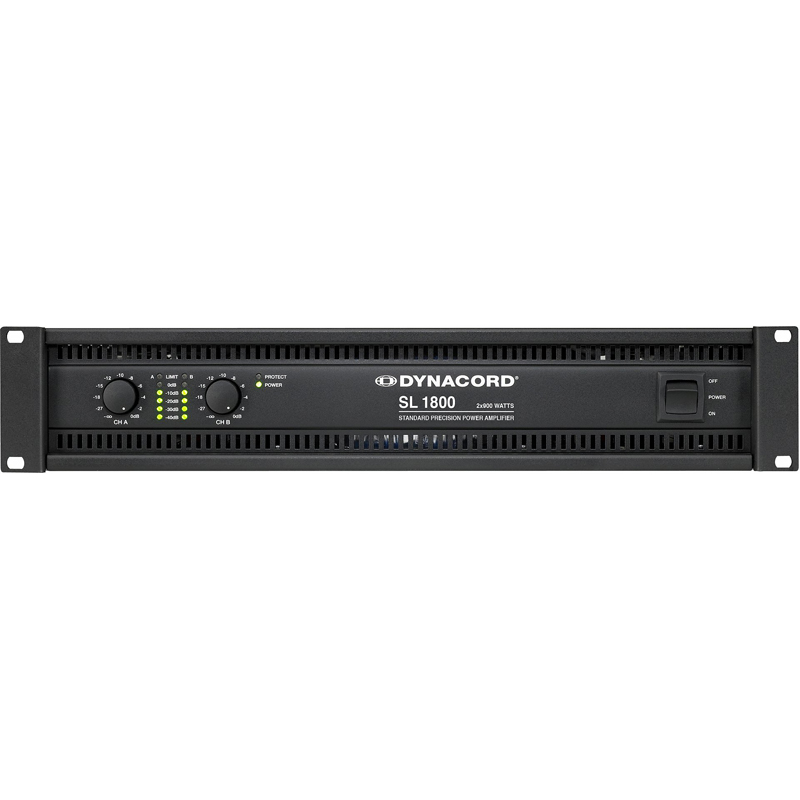

Dynacord Amplifier SL-1800 – 2x900w Power Amp

Special Order

Contact us at sales@talentz.net

Features:

  • Maximum Midband Output Power, THD = 1%, 1 kHz, Dual Channel: 2 ohms – 1250 W, 4 ohms – 900 W, 8 ohms – 550 W
  • Maximum Single Channel Output Power, Dynamic-Headroom, IHF-A: 2 ohms – 2450 W, 4 ohms – 1400 W, 8 ohms – 700 W
  • Maximum Bridged Output Power, THD = 1%, 1 kHz: 4 ohms – 2800 W, 8 ohms – 1800 W
  • Input Sensitivity, rated power @ 8 ohms , 1 kHz: +5.1 dBu (1.39 Vrms)
  • Maximum Input Level: +21 dBu (8.69 Vrms)
  • Voltage Gain, ref. 1 kHz: 32.0 dB
  • Frequency Response, ref. 1 kHz: 10 Hz…40 kHz (±1 dB)
  • Output Stage Topology: Class H
  • Dimensions (W x H x D): 483 x 88.1 x 421.5 mm
  • Weight: 16.3 kg (35.9 lbs)
SKU: TLZ-1560 Categories: , Product ID: 21169

Description

Solid Dynacord amplifier technology at highly competitive prices.

These amplifiers offer high, stable power output and a high efficiency factor on the high performance level and are therefore the ideal choice for driving a multitude of mobile and club systems. SL series power amplifiers are equipped with a comprehensive protection package and dynamic limiters.

The integrated, switchable Low-Pass Notch filter (a typical Dynacord special feature) corrects the frequency response and optimizes the transient behaviour of loudspeakers.

SPECIFICATIONS
Maximum RMS Voltage Swing THD = 1%, 1 kHz 78.8 V
Power Bandwidth THD = 1%, ref. 1 kHz, half power @ 4 Ω < 10 Hz to 30 kHz
Voltage Gain, ref. 1 kHz 32.0 dB
Input Sensitivity rated power @ 8 Ω, 1 kHz +5.1 dBu (1.39 Vrms)
THD at rated Output Power MBW = 80 kHz, 1 kHz < 0.03%
IMD-SMPTE, 60 Hz, 7 kHz < 0.1%
DIM30, 3.15 kHz, 15 kHz < 0.05%
Maximum Input Level +21 dBu (8.69 Vrms)
Crosstalk ref. 1 kHz, at rated output power < -80 dB
Frequency Response, ref. 1 kHz 10 Hz to 40 kHz (±1 dB)
Input Impedance, active balanced 20 kΩ
Damping Factor, 1 kHz > 300
Slew Rate 27 V/µs
Signal to Noise Ratio A-weighted > 109 dB
Output Noise, A-weighted < -71 dBu
Output Stage Topology Class H
Power Requirements 240 V, 230 V, 120 V or 100 V; 50 Hz to 60 Hz (factory configured)
Power Consumption 1/8 maximum output power @ 4 Ω 700 W
Mains Fuse 240 V / 230 V: T15AH; 120 V / 100 V: T25AH
Protection Audio limiters, High temperature, DC, HF, Back-EMF, Peak current limiters, Inrush current limiters, Turnon delay
Cooling Front-to-rear, 3-stage-fans
Ambient Temperature Limits +5 °C to +40 °C (40 °F to 105 °F)
Safety Class I
Dimensions (W x H x D), mm 483 x 88.1 x 421.5
Weight 16.3 kg (35.9 lbs)
Signal Processing LPN, switchable
Optional Accessories Rear-rackmount D113223 (RMK-15)
