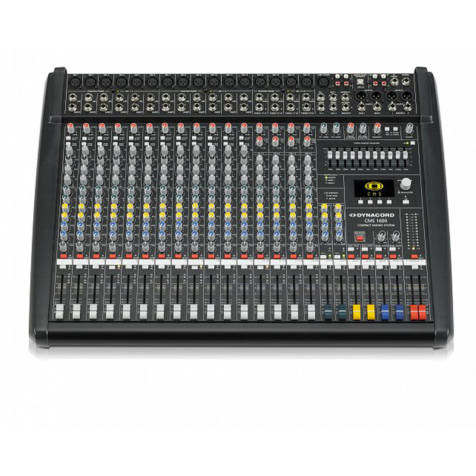

Dynacord Non Powered Mixer CMS1600-3 16-channel compact mixing system

Special OrderPlease contact us at sales@talentz.net for price and availability

Features:

  • Intuitive mixer with 16 input channels (12 Mic/Line + 4 Mic/Stereo-Line)
  • 2 High-Quality editable effects, 100 factory and 20 user presets
  • Professional 4×4 24-bit / 96 kHz USB interface with MIDI
  • 11 band stereo graphic equalizer
  • Optional robust cover-lid with integrated handle
SKU: TLZ-1601 Categories: , Product ID: 21167

Description

The Compact Mixing System from Dynacord has seized pole position in this segment of the market by virtue of the quality of its sound, components and features. By integrating a high-quality mixer, two digital effects processors of studio grade, a graphic equalizer and also a professional digital interface to PC or Mac, the CMS mixers represent the ideal solution for a large number of demanding applications in the audio sector.

The mixing section starts with 16 lowest noise, discrete microphone preamps. 6 auxiliary busses, two of them switchable pre/post fader, allow high flexibility for monitoring. The two effects processors offer 100 factory presets, including the already legendary PowerMate-reverbs. A TAP key allows precise setting of delay times. Further, each preset can be edited and stored to 20 User memories.

The built in uncompromising USB audio interface shares 4 playback and 4 recording channels simultaneously with a PC or Mac, please see information on available drivers, following studio standard 24-bit / 96 kHz. An additional MIDI interface allows integration of instruments, such as keyboards. A license for Steinbergs Cubase software is part of the package.

The 11 band stereo graphic equalizer can be routed flexible to master or monitor channels.

For dark environments an optional gooseneck light can be connected. All faders are dust protected and not least the balanced XLR outputs for master and monitor underline the professional approach.

Optional a very robust cover lid with an integrated handle is available. A solution that offers optimal protection for the device as well as greater carrying comfort without the need of adding a large, heavy flight case.

The Compact Mixing System from Dynacord has seized pole position in this segment of the market by virtue of the quality of its sound, components and features. By integrating a high-quality mixer, two digital effects processors of studio grade, a graphic equalizer and also a professional digital interface to PC or Mac, the CMS mixers represent the ideal solution for a large number of demanding applications in the audio sector.

The mixing section starts with 16 lowest noise, discrete microphone preamps. 6 auxiliary busses, two of them switchable pre/post fader, allow high flexibility for monitoring. The two effects processors offer 100 factory presets, including the already legendary PowerMate-reverbs. A TAP key allows precise setting of delay times. Further, each preset can be edited and stored to 20 User memories.

The built in uncompromising USB audio interface shares 4 playback and 4 recording channels simultaneously with a PC or Mac, please see information on available drivers, following studio standard 24-bit / 96 kHz. An additional MIDI interface allows integration of instruments, such as keyboards. A license for Steinbergs Cubase software is part of the package.

The 11 band stereo graphic equalizer can be routed flexible to master or monitor channels.

For dark environments an optional gooseneck light can be connected. All faders are dust protected and not least the balanced XLR outputs for master and monitor underline the professional approach.

Optional a very robust cover lid with an integrated handle is available. A solution that offers optimal protection for the device as well as greater carrying comfort without the need of adding a large, heavy flight case.

SPECIFICATIONS
Channels (Mono + Stereo) 12 + 4
Auxiliarys (MON, FX, AUX) 2 Pre, 2 Post, 2 Pre/Post switchable
MIC GAIN (Mono / Stereo) 0 to +60 dB / +10 to +60 dB
LINE/CD/USB GAIN (Stereo) -10 to +20 dB
THD, at 1 kHz, MBW = 80 kHz
MIC input to Master A L/R outputs, +16 dBu, typical < 0.005%
Frequency Response, -3 dB, ref. 1 kHz, any input to any Mixer output 15 Hz to 70 kHz
Crosstalk, 1 kHz
Fader & FX/AUX/MON-Send attenuation > 85 dB
Channel to Channel < -80 dB
CMRR, MIC input, 1 kHz > 80 dB
Input Sensitivity, all level controls in max. position MIC / LINE (Mono) / LINE (Stereo) / CD (Stereo) -74 dBu (155 µV) / -54 dBu (1.55 mV) / -34 dBu (15.5 mV) / -34 dBu (15.5 mV)
Maximum Level, mixing desk
MIC inputs +21 dBu
Mono Line inputs / Stereo Line inputs +41 dBu / +30 dBu
All other inputs +22 dBu
All other outputs +22 dBu
Input Impedances
MIC / Insert Return 2 kΩ / > 3.3 kΩ
2Track Return & CD In 10 kΩ
All other inputs > 15 kΩ
Output Impedances
Phones 47 Ω
All other outputs 75 Ω
Equivalent Input Noise, MIC input, A-weighted, 150 ohms -130 dBu
Noise, Channel inputs to Master A L/R outputs, A-weighted
Master fader down -97 dBu
Master fader 0 dB, Channel fader down -89 dBu
Master fader 0 dB, Channel fader 0 dB, Channel gain unity -82 dBu
Equalization
LO Shelving ±15 dB / 60 Hz
MID Peaking, mono inputs ±15 dB / 100 Hz to 8 kHz
MID Peaking, stereo inputs ±12 dB / 2.4 kHz
HI Shelving ±15 dB / 12 kHz
Master EQ 11-band (63, 125, 250, 400, 630, 1k, 1.6k, 2.5k, 4k, 6.3k, 12kHz) ±10 dB / Q = 1.5 to 2.5
Power Consumption
without lamp / with lamp 50 W / 55 W
Filter
LO-CUT, mono inputs f = 80 Hz, 18 dB/oct.
VOICE FILTER, mono inputs switchable
FEEDBACK FILTER, MON 1/2 70 Hz to 7 kHz, Notch, -9 dB
Effects
Type, effects presets Dual stereo 24/48-bit multi effects processors, 100 Factory + 20 User, Tap-Delay
Remote control Footswitch, MIDI
Display 128 x 64 pixels, OLED
Digital Audio Interface
Channels 4 In / 4 Out
AD/DA Conversion, Sampling Rate 24-bit, 44.1 / 48 / 88.2 / 96 kHz
PC Interface USB2.0, Female Type B
Supported OS See documentation
MIDI Interface 5-pin DIN connector, In / Out
Protection
Mixer Outputs (Relay controlled) MON 1, MON 2, MASTER A
Switching Mode Power Supply (µC controlled) Mains Over/Undervoltage, High Temperature
Phantom Power, switchable in groups 48 V DC
Power Requirements (SMPS with auto range mains input) 100 V to 240 V AC, 50 Hz to 60 Hz
Dimensions (W x H x D, without lid), mm 663.5 x 155 x 498.5
Weight, without lid 12 kg
Optional Accessories
Lid DC-LID1600
Gooseneck Lamp, 12V/5W, 12″, XLR 4 pol. DC-LITLITE-4P
FS 11 (Footswitch with LED) DC-FS11
