Description
Guild USA Guitars M-240E Troubadour

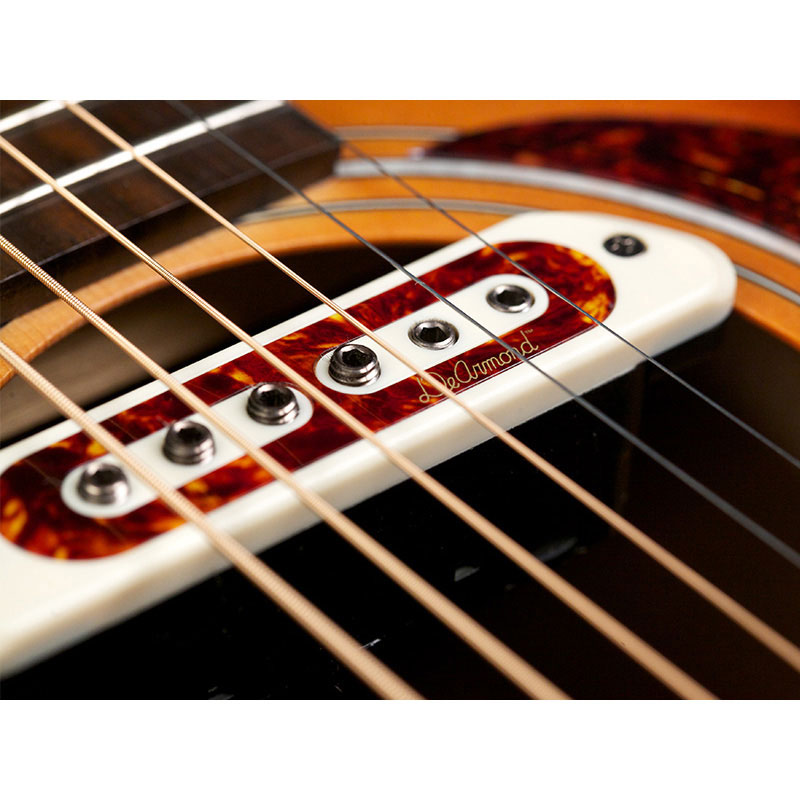

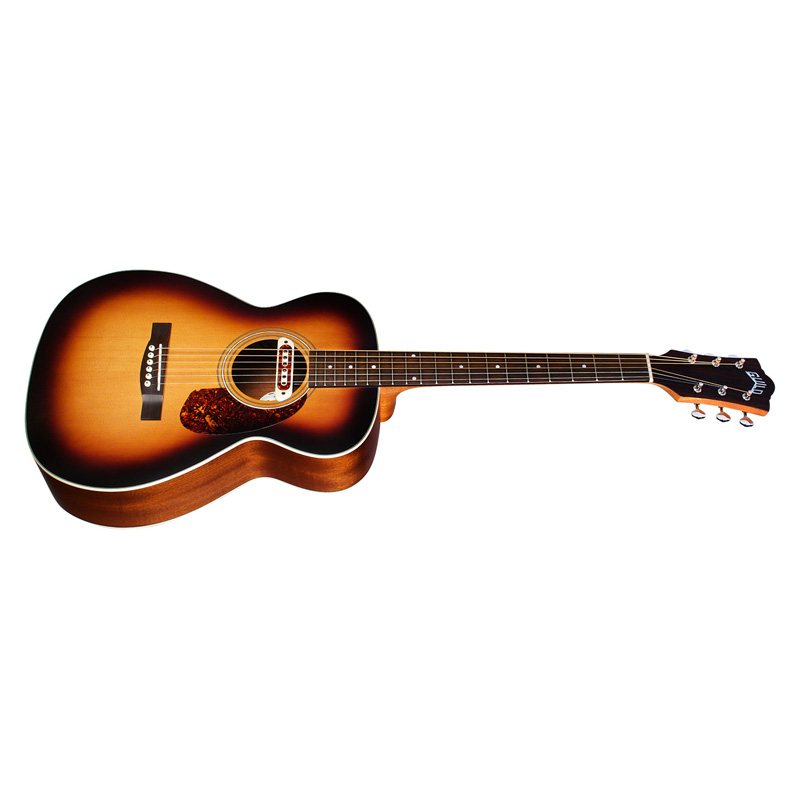

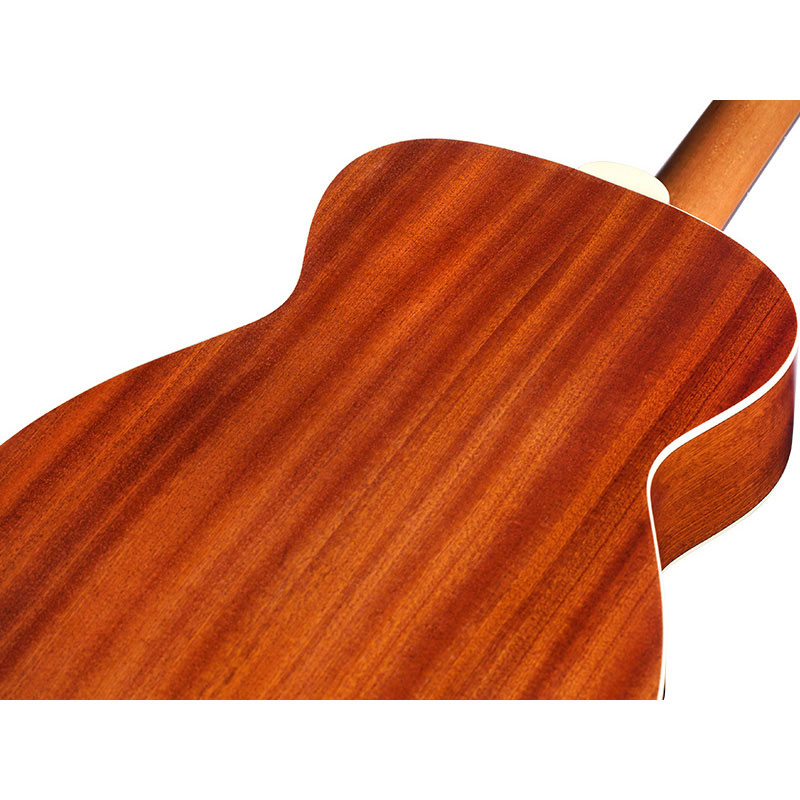

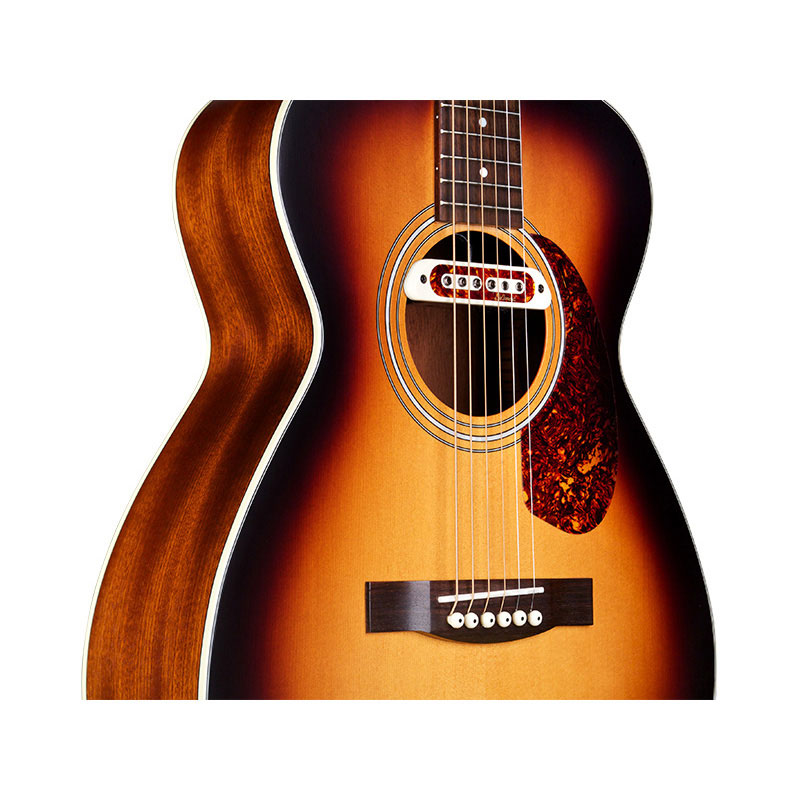

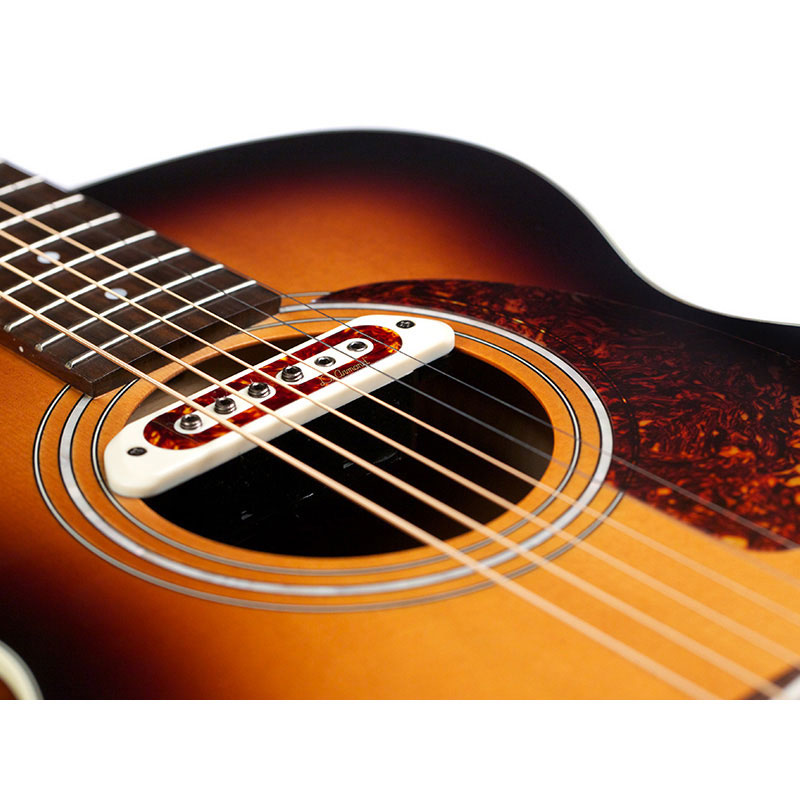

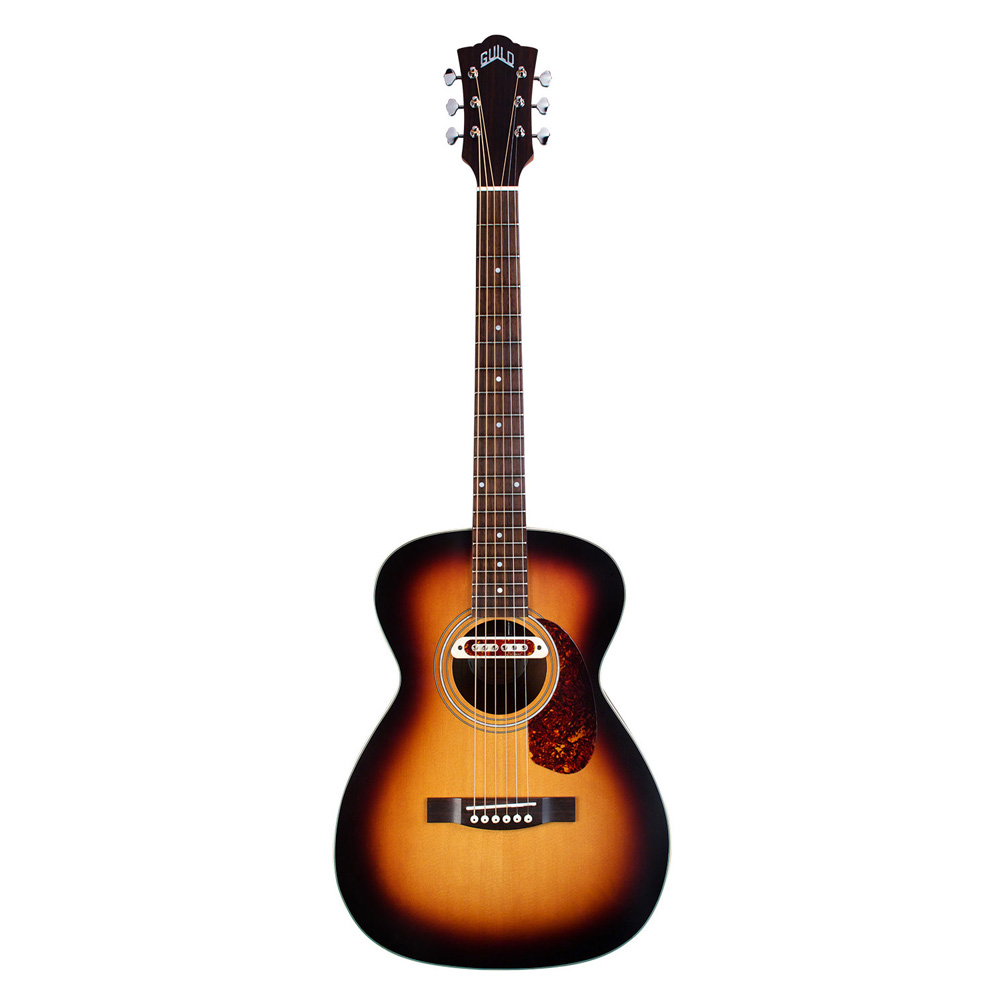

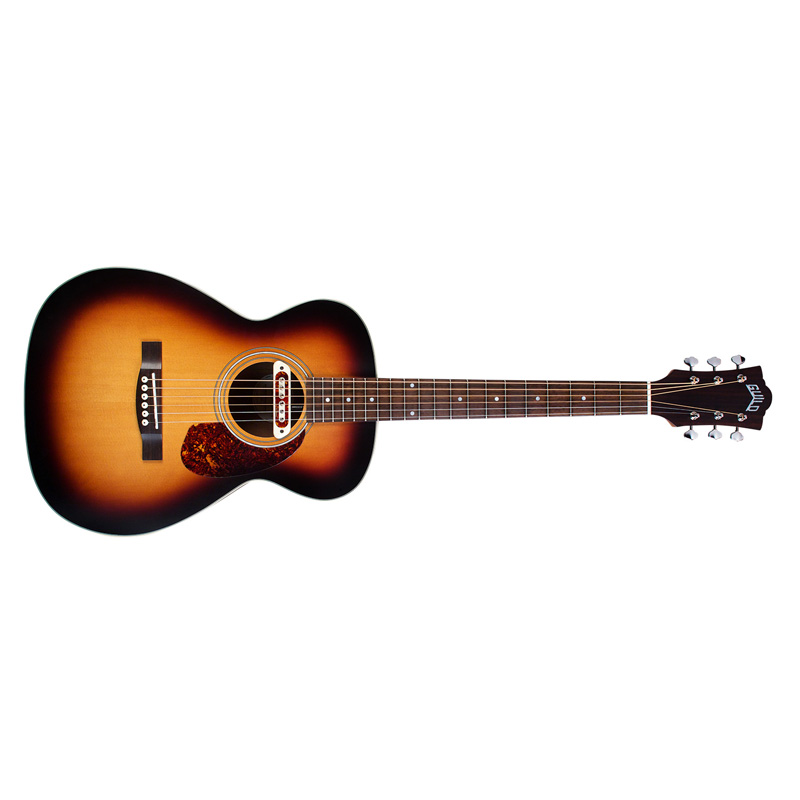

Meet the M-240E Troubadour, a small-body, sunburst addition to Guild’s acoustic archback line.The M-240E Troubadour is an homage to Guild’s F-20, a small-bodied wonder that became popular during the folk era of the 60’s. This petite guitar is ideal for fingerstyle playing and light strumming. The reduced size is excellent for smaller players or musicians looking for a great sounding travel guitar.The M-240E Troubadour features a solid Sitka spruce top over an arched mahogany back, a classic wood combination that produces a well-balanced voice with plenty of overtones. Other features include a bone nut and saddle, tortoiseshell pickguard, nickel plated open gear tuners, and a thin, resonate satin polyurethane finish with a vintage sunburst top. Completing the Troubadour’s vintage vibe is the DeArmond Tone Boss, a user-friendly humbucking magnetic soundhole pickup with built-in volume control that is compatible with any amplifier.
SPECIFICATIONS
Body
- Body Shape: M – Concert
- Body Top: Solid Sitka Spruce
- Top Bracing Pattern: Scalloped X
- Soundhole Diameter: 3 5/8″ (91mm)
- Rosette: Mother-Of-Pearl / ABS
- Top Purfling Inlay: Black/White/Black ABS
- Body Sides: Mahogany
- Body Back: Mahogany
- Body Binding: Ivory ABS
Neck
- Neck Material: Mahogany
- Scale Length: 24 3/4″ (629mm)
- Neck Shape: C Shape
- Nut Width: 1 11/16″ (43mm)
- Neck Thickness 1st Fret: 20mm
- Neck Thickness 9th Fret: 24mm
- Truss Rod: Dual Action
- Truss Rod Wrench: 4mm Allen Key
- Fingerboard Material: Pau Ferro
- Fingerboard Radius: 16″ (406mm)
- Fingerboard Inlays: 5mm Dots – Mother-Of-Pearl
- Fingerboard Inlay Location: 3, 5, 7, 9, 12 (x2), 15, 17, 19
- Frets Total: 20
Finish
- Color: Vintage Sunburst (VSB)
- Finish: Satin Polyurethane
Hardware
- Bridge Material: Pau Ferro
- Bridge String Spacing: 2 1/8″ (54mm)
- Bridge Pins: Ivory Colored Plastic with Black Dot
- Saddle Material: Compensated Bone
- Hardware Finish / Plating: Nickel
- Nut Material: Bone

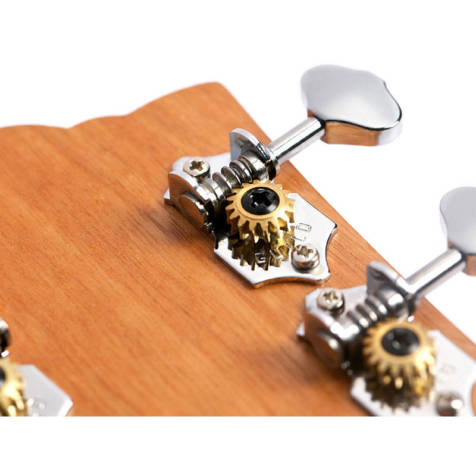

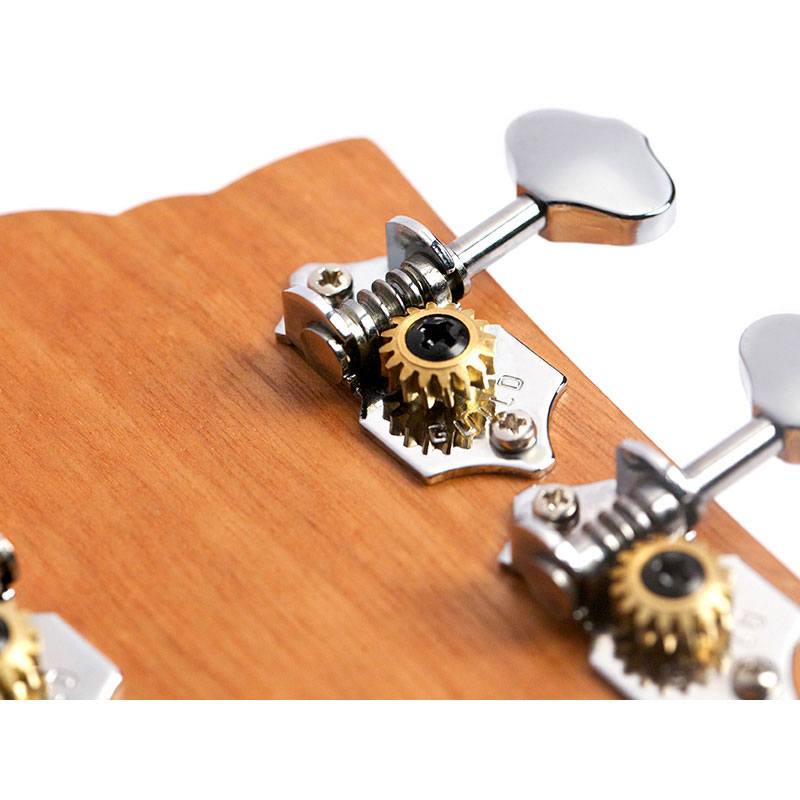

- Tuning Machines: Guild GBB1 Butterbean Tuning Machines 16:1 Nickel
- Endpin: Endpin Jack – Nickel
- Pickguard: Tortoiseshell
Electronics
- Electronics: DeArmond Tone Boss
Other
- Strings: D’Addario EXP16 – Coated Phosphor Bronze Light (.012 – .053)
- Included Case: Case Sold Separately
- Upper Bout Width: 10 1/4″ (260mm)
- Lower Bout Width: 13 7/8″ (352mm)
- Body Depth Upper Bout: 3 3/8″ (85mm)
- Body Depth Lower Bout: 4 1/8″ (105mm)
- Body Length: 18 1/8″ (460mm)
- Overall Length: 39″ (991mm)
