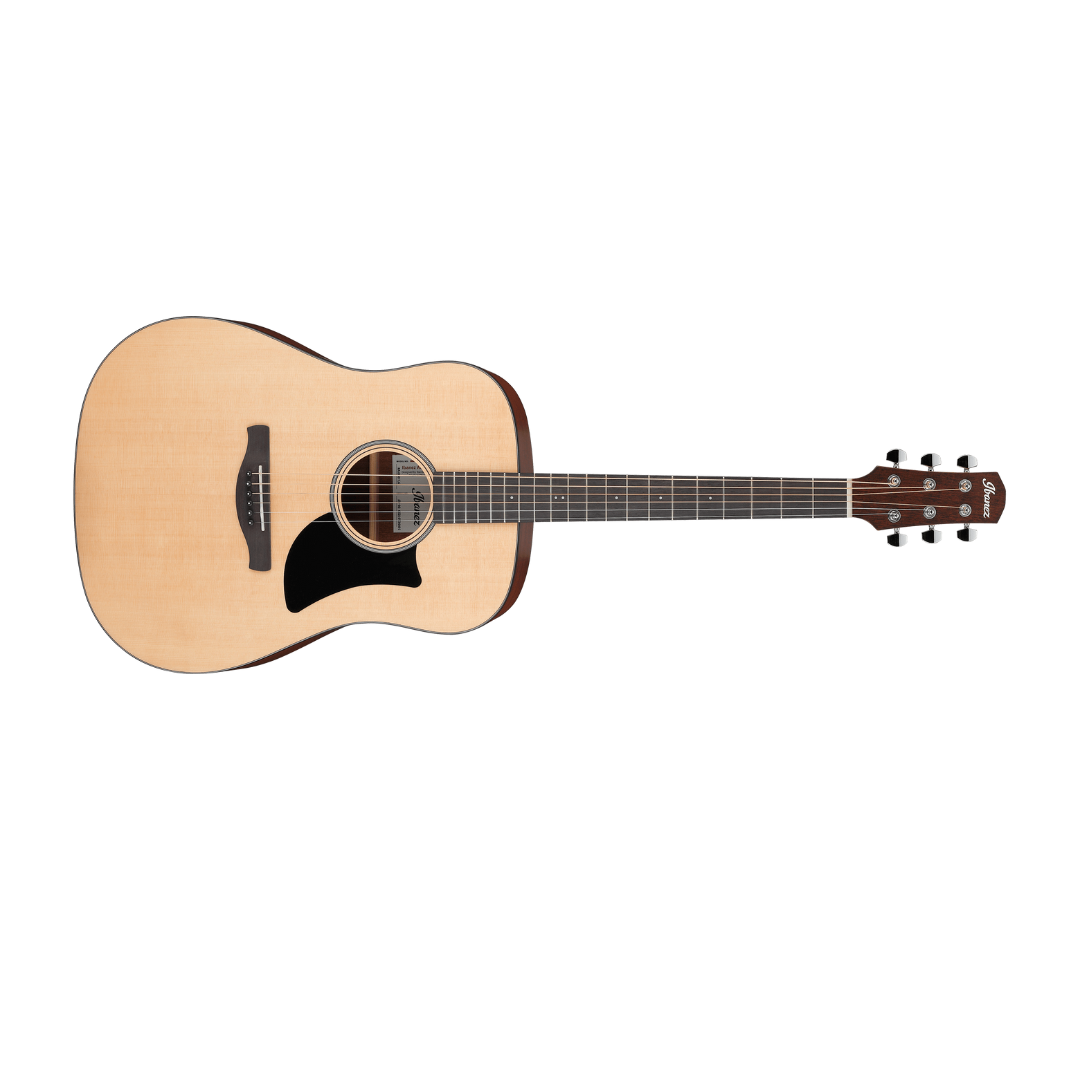

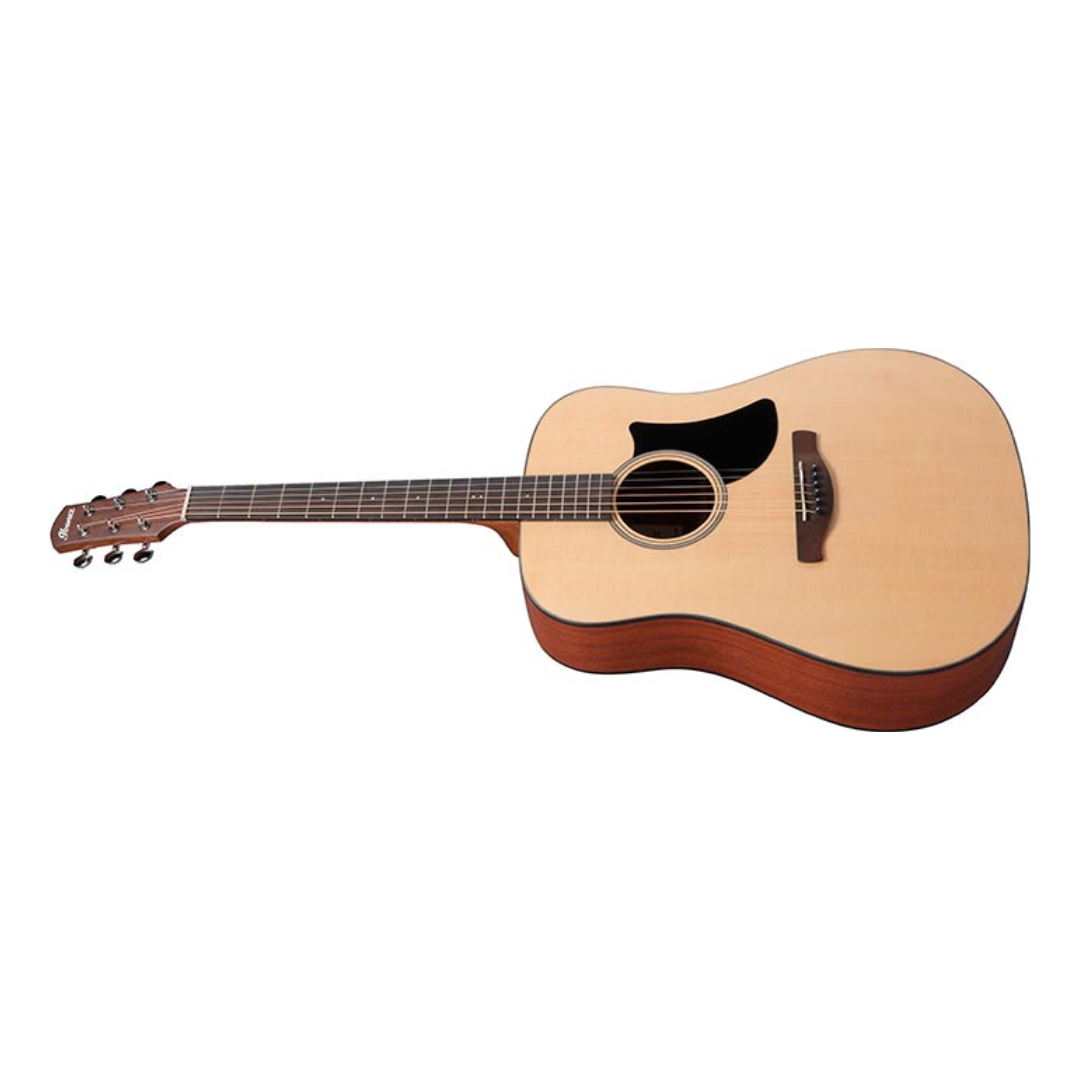

Ibanez AAD50 Advanced Acoustic Grand Dreadnought Guitar (Natural)

Description

• SPECS

  • body shape
    Grand Dreadnought body
  • bracing
    X-M Bracing
  • top
    Solid Sitka Spruce top

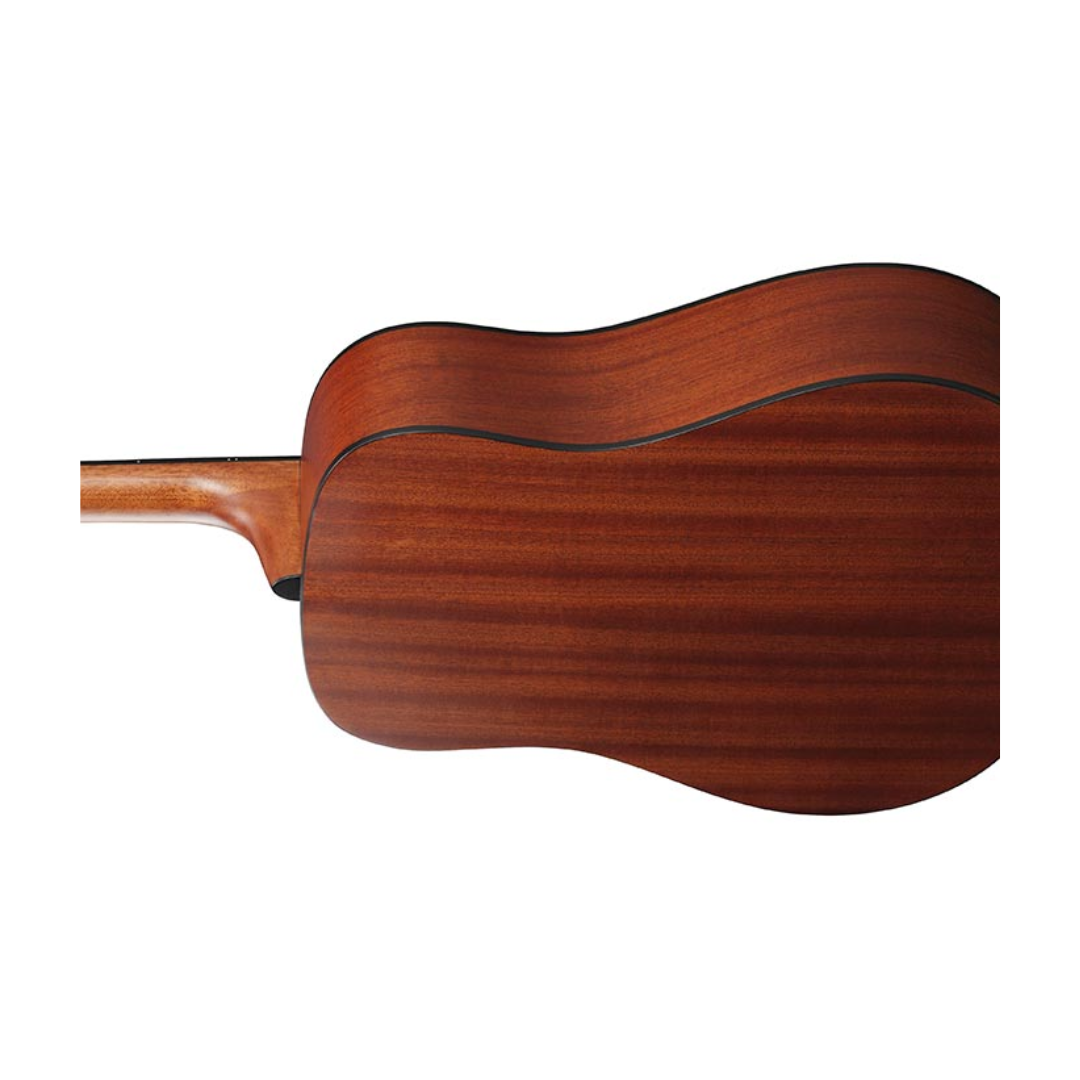

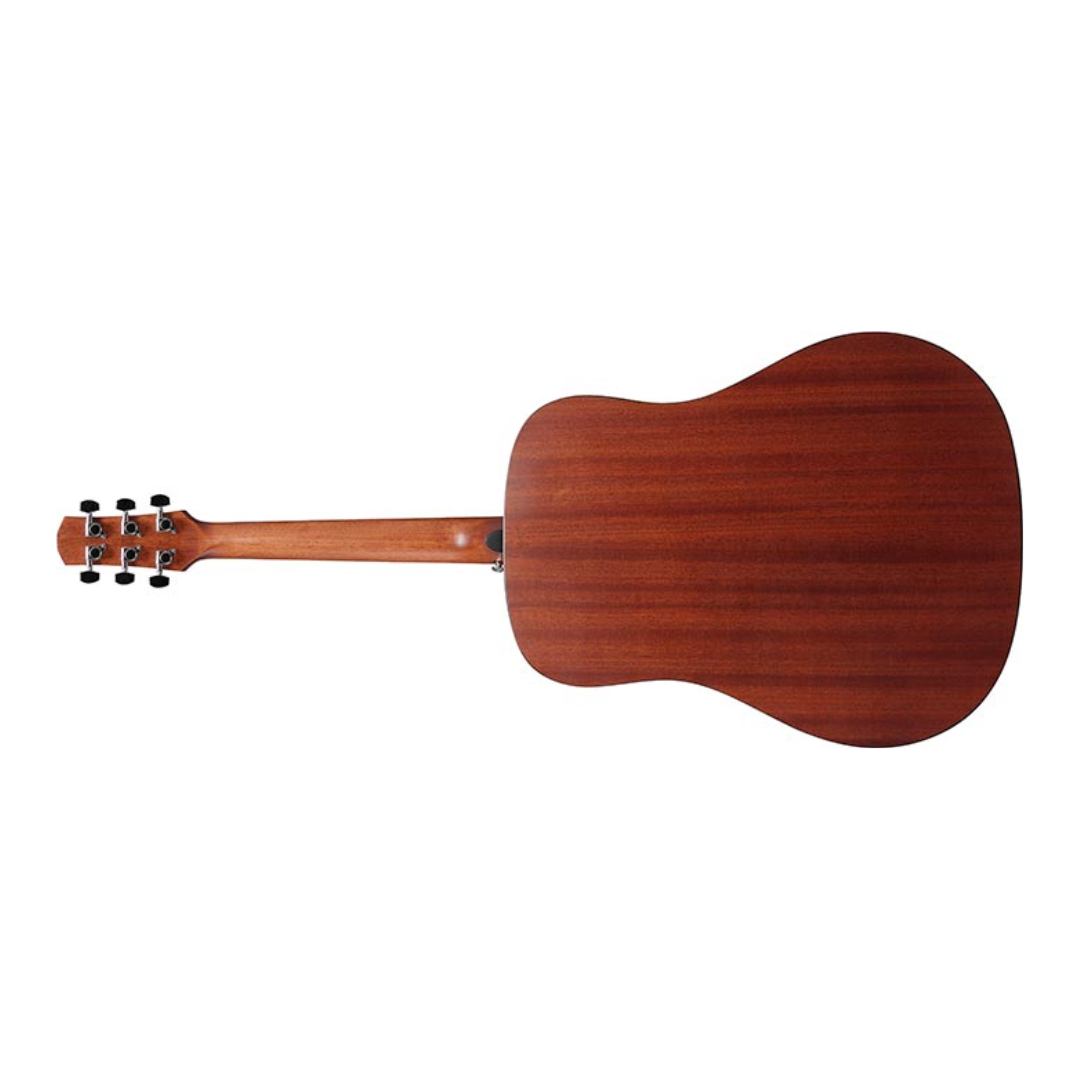

  • back & sides
    Sapele back & Sapele sides
  • neck
    AADOkoume neck
  • fretboard
    Purpleheart fretboard
  • bridge
    Purpleheart bridge
  • inlay
    White dot inlay
  • soundhole rosette
    Black & White multi rosette

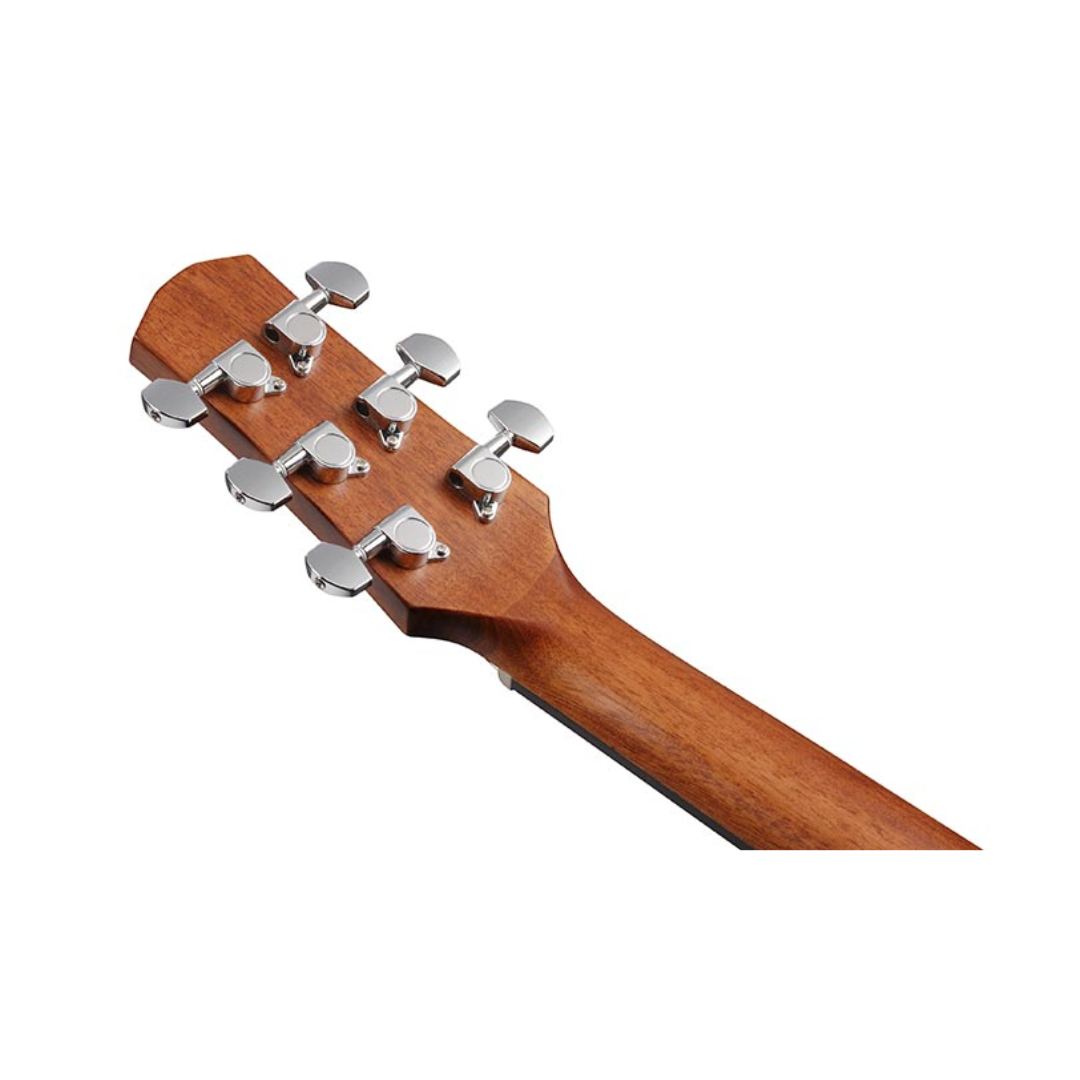

  • tuning machine
    Chrome Die-cast tuners (18:1 gear ratio)
  • number of frets
    20
  • bridge pins
    Ibanez Advantage™
  • strings
    D’Addario® EXP16
  • string gauge
    .012/.016/.024/.032/.042/.053
  • string space
    11mm
  • factory tuning
    1E,2B,3G,4D,5A,6E

• NECK DIMENSIONS

  • • Scale :
      650mm/25.6″
    • a : Width
      43mm at NUT
    • b : Width
      55mm at 14F
    • c : Thickness
      21mm at 1F
    • d : Thickness
      22mm at 7F
    • Radius :
      400mmR

    • BODY DIMENSIONS

      • • a : Length
          20 3/8“
        • b : Width
          16 1/4“
        • c : Max Depth
          5 “

      •

        Grand Dreadnought body
