Description
-
SPECS
- body shape
- Dreadnought body
- top
- Solid Okoume top

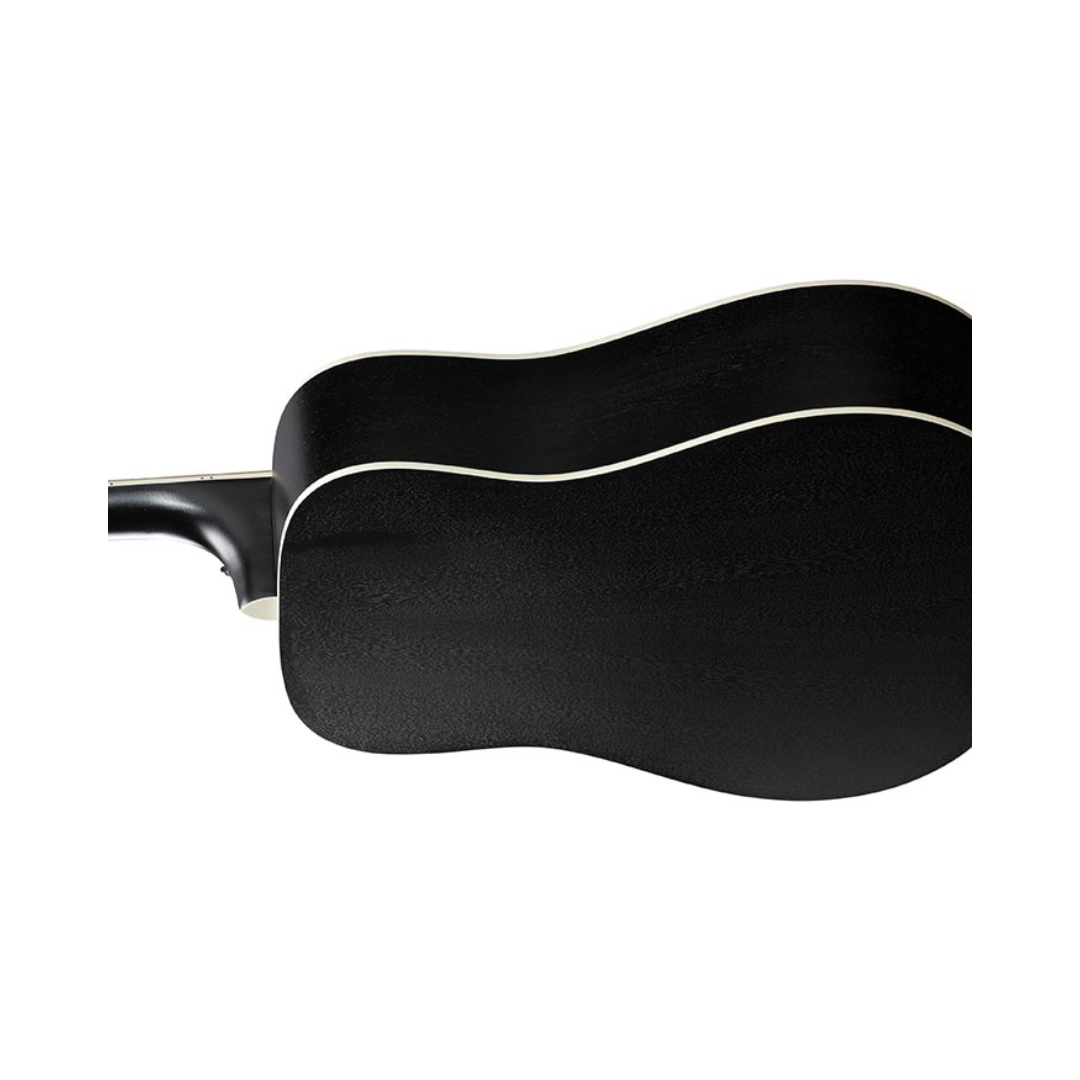

- back & sides
- Okoume back & Okoume sides
- neck
- AWNyatoh neck
- fretboard
- Laurel fretboard
- bridge
- Laurel bridge
- inlay
- White dot inlay
- soundhole rosette
- Black & White multi

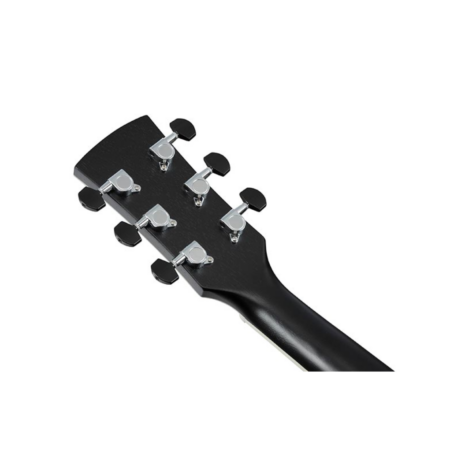

- tuning machine
- Chrome Die-cast tuners w/Black knobs (18:1 gear ratio)
- nut material
- Bone
- number of frets
- 20
- saddle material
- Compensated Bone
- bridge pins
- Ibanez Advantage™
- strings
- D’Addario® XTAPB1253
- string gauge
- .012/.016/.024/.032/.042/.053
- string space
- 11mm
- factory tuning
- 1E,2B,3G,4D,5A,6E
-
NECK DIMENSIONS
-
- Scale :
- 648mm/25.5″
- a : Width
- 43mm at NUT
- b : Width
- 54.33mm at 14F
- c : Thickness
- 21mm at 1F
- d : Thickness
- 22mm at 7F
- Radius :
- 400mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
BODY DIMENSIONS
-
- a : Length
- 20 1/8“
- b : Width
- 15 3/4“
- c : Max Depth
- 5“
-
DESCRIPTION
Guitar Body Diagram
A: Length of the body
B: Maximum width of the body
C: Maximum depth of the body
-
-
OTHER FEATURES
