Description

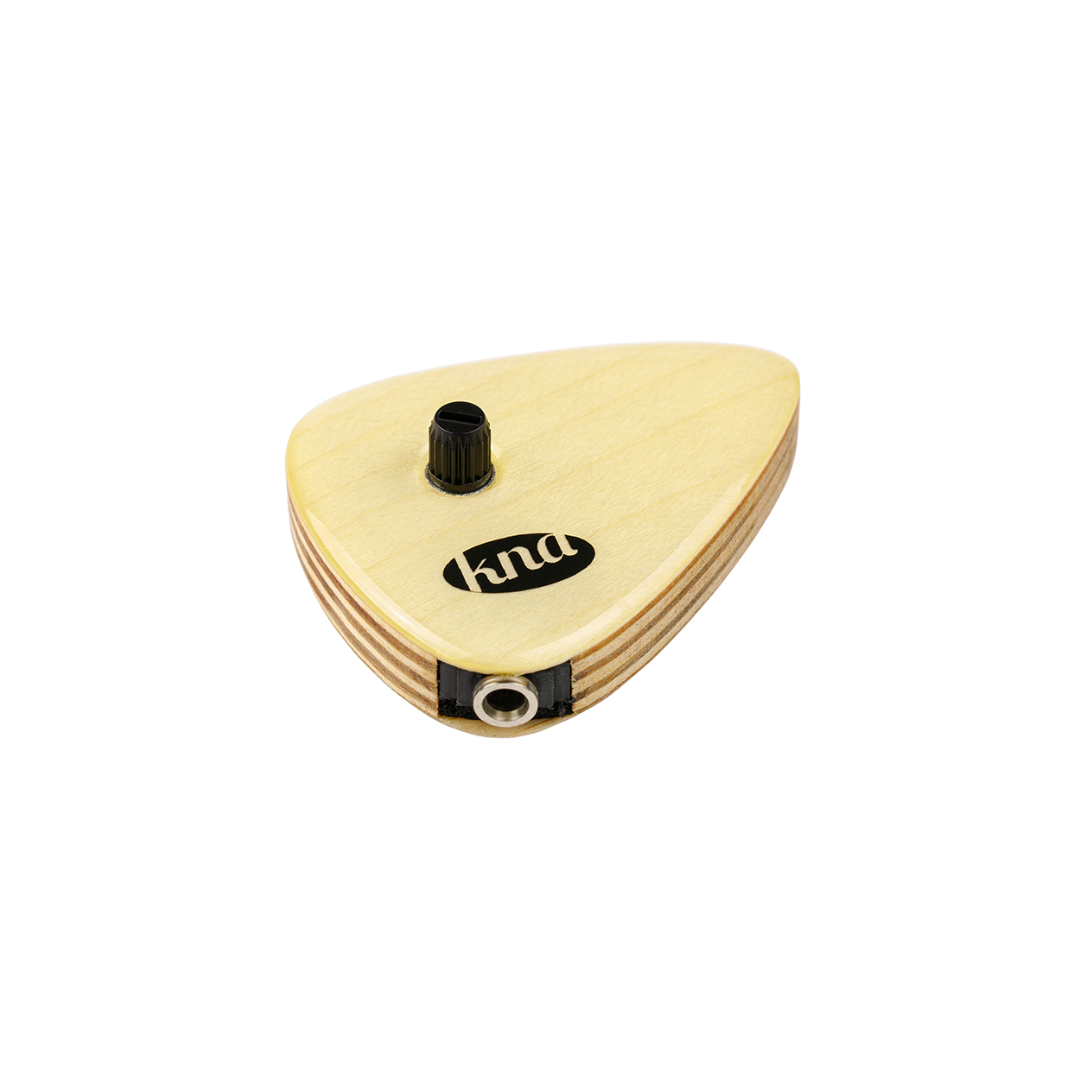

Portable surface-mounted piezo with volume control for variety of acoustic instruments

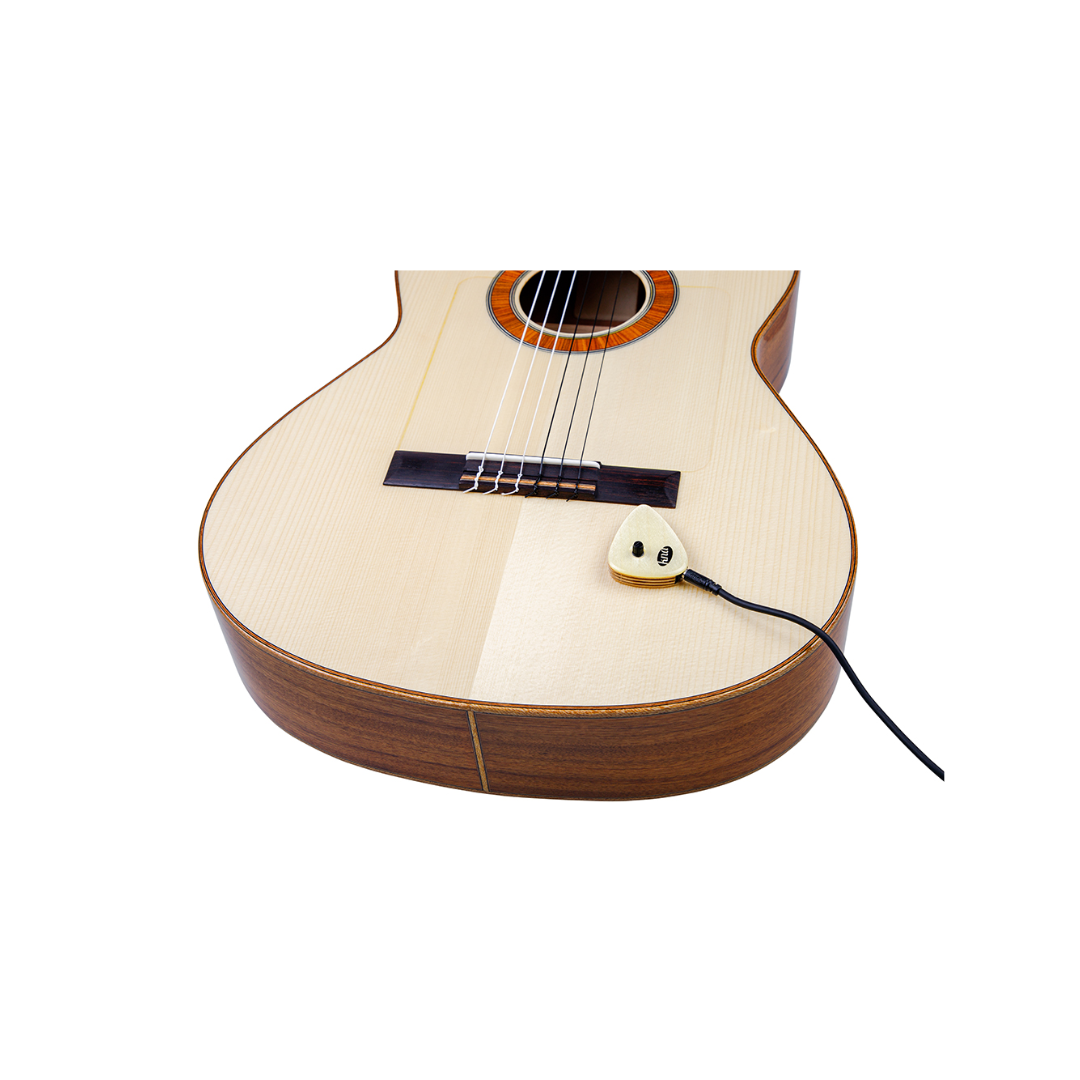

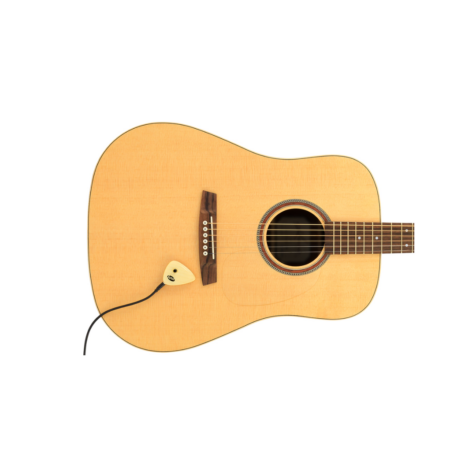

AP-2 is an ideal stick-on guitar pickup for acoustic musicians looking for an easy, effective solution to bring their sound to an amp and control volume from the stage.

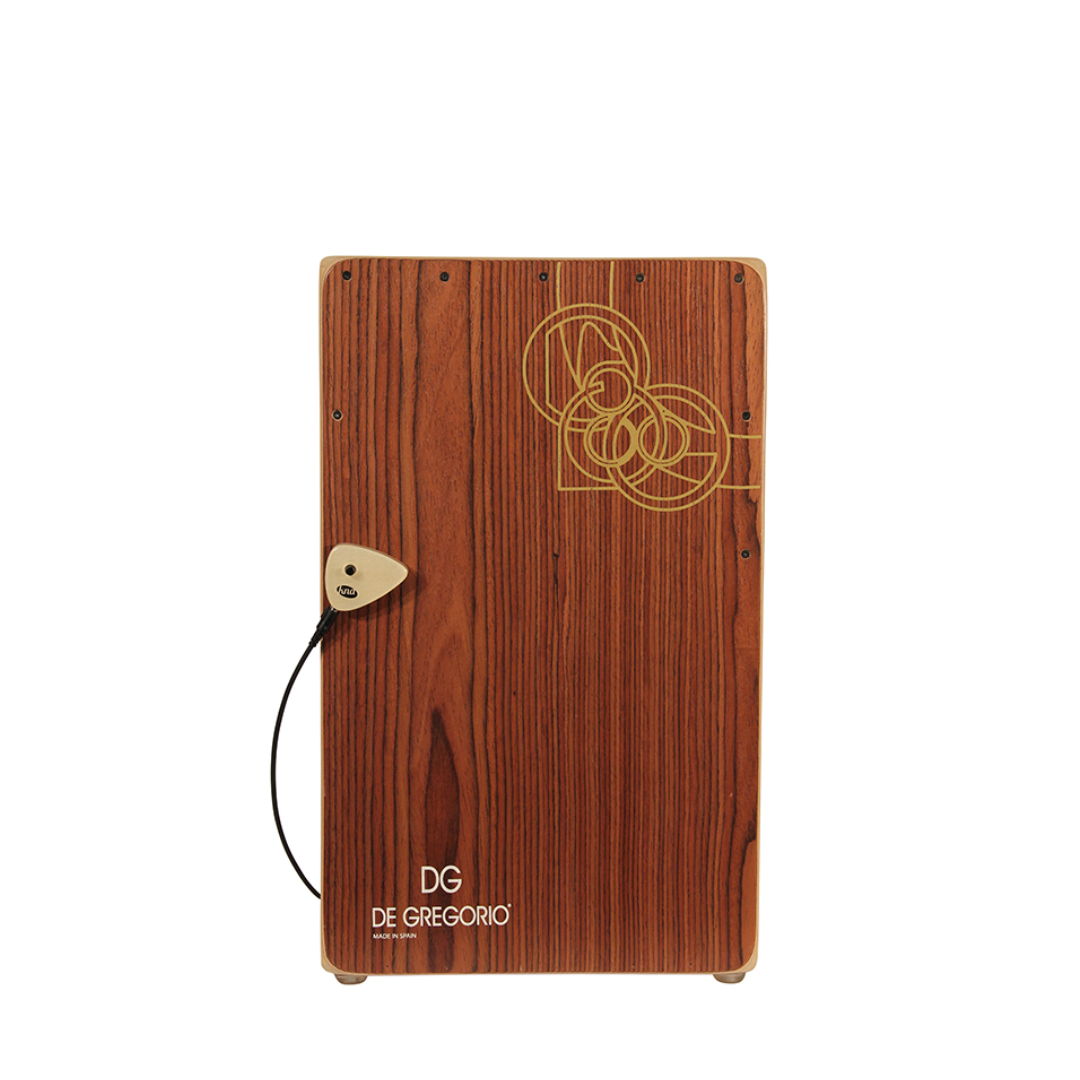

In addition to being a surface-mount guitar pickup, AP-2 can be used for harp, drums, and percussion.
| Specifications | |||||
| Weight | 12.80g / 0.45oz | ||||
| Wood | Laminated birch and maple top | ||||
| Maximum Impedance | 200 Ω | ||||
| Cable | 3meter / 9′ | ||||
| Measurements | |||||
| Specified part | Letter | Size in MM (From) | Size in MM (to) | Size in INCH (From) | Size in INCH (to) |
| Pickup length, side across from jack | a | 52,1 | 52,2 | 2,051 | 2,055 |
| Pickup length, long side adjacent to jack | b | 55,0 | 55,1 | 2,165 | 2,169 |
| Pickup length, short side adjacent to jack | c | 45,0 | 45,1 | 1,772 | 1,776 |
| Pickup length, front to back | d | 54,5 | 54,6 | 2,146 | 2,150 |
| Pickup height without potentiometer | e | 12,0 | 12,1 | 0,472 | 0,476 |
| Pickup height with potentiometer | f | 17,2 | 17,2 | 0,675 | 0676 |
| Adhesive disk diameter | g | 20,0 | – | 0,787 | – |
| Adhesive disk thickness | h | 1,5 | – | 0,059 | – |
| *Our handmade pickups may vary slightly in size due to the nature of the building | |||||
