Description

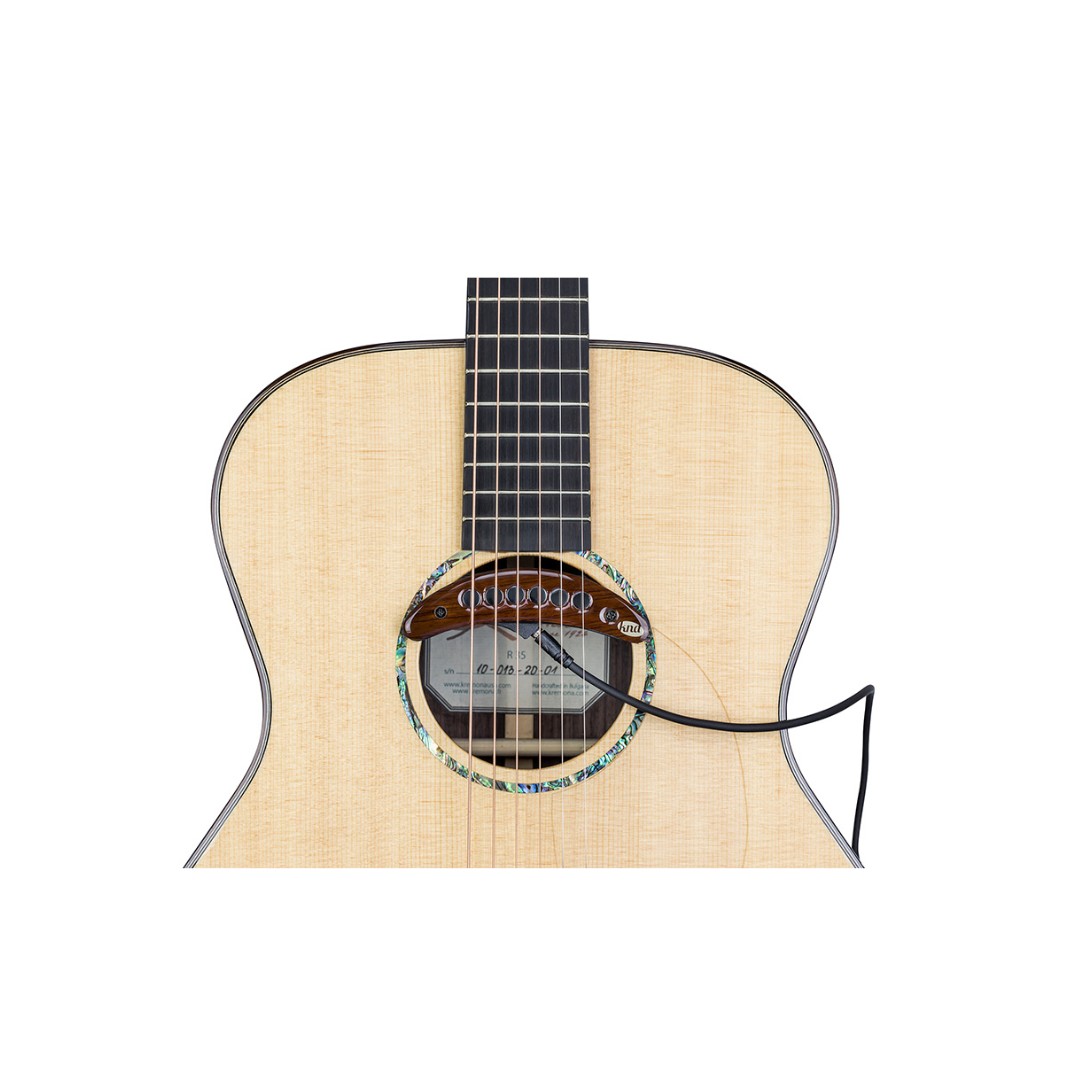

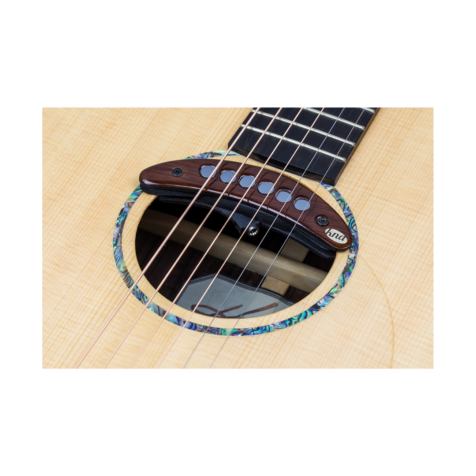

Single-coil, soundhole-mounted design for steel-string acoustic guitar
Employing the fast and articulate attack of ferrite magnets, the SP-1 amplifies the sound of your acoustic with a dynamic blend of clarity and balance.
Its high-quality mahogany casing and lightweight design ensure maximum sensitivity and durability.
SPECIFICATIONS
| Specifications | |||||
| Weight | 45.35g. / 1.6oz | ||||
| Wood | Mahogany | ||||
| Impedance | 3.60kΩ | ||||
| Cable | 3meter / 9′ | ||||
| Measurements | |||||
| Specified part | Letter | Size in MM (from*) | Size in MM (to*) | Size in INCH (from*) | Size in INCH (to*) |
| Pickup length on top of soundboard | a | 112,4 | 112,6 | 4,425 | 4,433 |
| Pickup width on top of soundboard | b | 33,0 | 34,0 | 1,299 | 1,339 |
| Pickup height on top of soundboard (not including magnet pole pieces) | c | 14,5 | 14,6 | 0,571 | 0,575 |
| Active signal transfer area length | d | 70,3 | 70,4 | 2,768 | 2,772 |
| Maximum soundhole diameter | e | 107,5 | 107,6 | 4,232 | 4,236 |
| Minimum soundhole diameter | f | 80,5 | 80,6 | 3,169 | 3,173 |
| *Our handmade pickups may vary slightly in size due to the nature of the building | |||||
