PreSonus TubePre V2 Tube Microphone Preamp

Talentz Savings: OMR 6.000  Retail Price: OMR 66.000

OMR 60.000

Features:

  • XMAX Class A preamp input stage
  • 12AX7 dual-servo vacuum tube output stage
  • Input Gain control
  • 48V phantom power
  • 80 Hz high-pass filter
  • -20 dB pad
  • Instrument input select
  • Polarity-reverse switch
  • Backlit VU meter
  • Clip LED

Input/Output

  • 1 unbalanced ¼-inch instrument input
  • 1 balanced XLR mic input
  • 1 unbalanced ¼-inch line output
  • 1 balanced XLR line output

Physical

  • Compact 1/3U rack-mount chassis
  • External 12 VDC, 1A power supply

In stock (can be backordered)

SKU: TLZ-673454001659 Category: Product ID: 22937

Description

A versatile preamp with impressive dynamic range and detail.

Compact and affordable, the ever-popular TubePre V2 professional tube preamplifier employs our popular XMAX Class A solid-state preamp, followed in the signal path by a 12AX7 vacuum-tube stage. A dual-servo (no capacitors) gain stage lets you boost the signal to smoking hot levels without significantly increasing noise. Discrete components and high-voltage operation offer dynamic range and detail not found in other single-channel tube preamps in its class. Built tough enough for serious gigging, the TubePre V2 is a great choice for guitars and microphones alike.

From gentle warmth to total fuzz with the twist of a knob.

XMAX microphone preamps deliver incredibly high headroom, deep lows, smooth highs, and a rich overall sound garnering them rave reviews from users and the media alike. The 12AX7 vacuum tube that follows the XMAX in the TubePre V2 was hand-selected and carefully tested for electrical conformity and freedom from microphonics. Twist the Drive saturation control to add the “color” that only a hand-selected 12AX7 can deliver – from gentle warmth to total fuzz.

A versatile tool that’s built to travel.

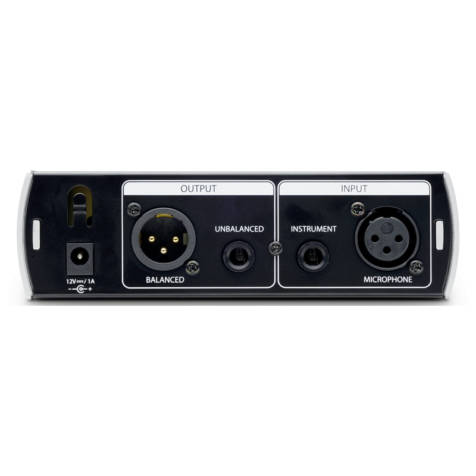

Housed in a rugged case that is built to travel, the TubePre V2 rear panel sports separate unbalanced, ¼-inch instrument and balanced, XLR mic inputs and unbalanced ¼-inch and balanced XLR line outputs. Use it as a straight-up tube preamp or a dynamite direct box (DI) for guitars and basses. We’ve provided all of the extras you need, including a highpass filter, phantom power, polarity reverse, and a backlit VU meter. Yet with all its features, it’s small enough to carry almost anywhere-or simply screw-mount it to a standard rack tray.

Great sound, live or in the studio.

Live or in the studio, the TubePre V2 is a great-sounding tool you’ll use on a variety of sources. Add just the right amount of tube distortion to guitars, basses, and mic signals. Go lightly for gentle warmth or go all-out for solid crunch-it’s up to you. So give your ears a treat and test the TubePreV2 at your favorite PreSonus dealer. Then check out the price and prepare to be amazed. Because with PreSonus, big sound does not have to cost big money.

Mic Input
Connector Type XLR, female, balanced
EIN -131 dB, 20 kHz BW, max gain, Rs=40Ω, A-wtd -128 dB, 20 kHz BW, max gain, Rs=40Ω, unwtd
Frequency Response 20 Hz – 20 kHz, -0.3 dB, +4 dBu, unity gain 5 Hz – 120 kHz, -3 dB, +4 dBu, unity gain
THD+N 0.01%, -10 dBu, 1 kHz, unity gain, 20 kHz BW, unwtd
Dynamic Range 115 dB, 1 kHz, unity gain, 20 kHz BW, A-wtd 107 dB, 1kHz, unity gain, 20 kHz BW, unwtd
Input Impedance 1.3 kΩ
Phantom Power +48 VDC, 10 mA
Instrument Input
Connector Type ¼” TS, female, unbalanced
Input Impedance 1 MΩ
Analog Output
Connector Types XLR, male, balanced ¼” TS, female, unbalanced
Maximum Output +20 dBu
Output Impedance 51Ω
Tube Stage
Type 12AX7
Power
External Power Adapter +12 VDC, 1A, center-pin positive
PSU Barrel Dimensions 5.5 mm O.D., 2.1 mm I.D., 9.5 mm length
Physical
Dimensions 1/3U rack-mountable (screw-mount to standard rack tray, not included)
Height 1.75″ (44.45 mm)
Depth 5.5″ (139.7 mm)
Width 5.5″ (139.7 mm)
Weight 5 lb. (2.27 kg)
