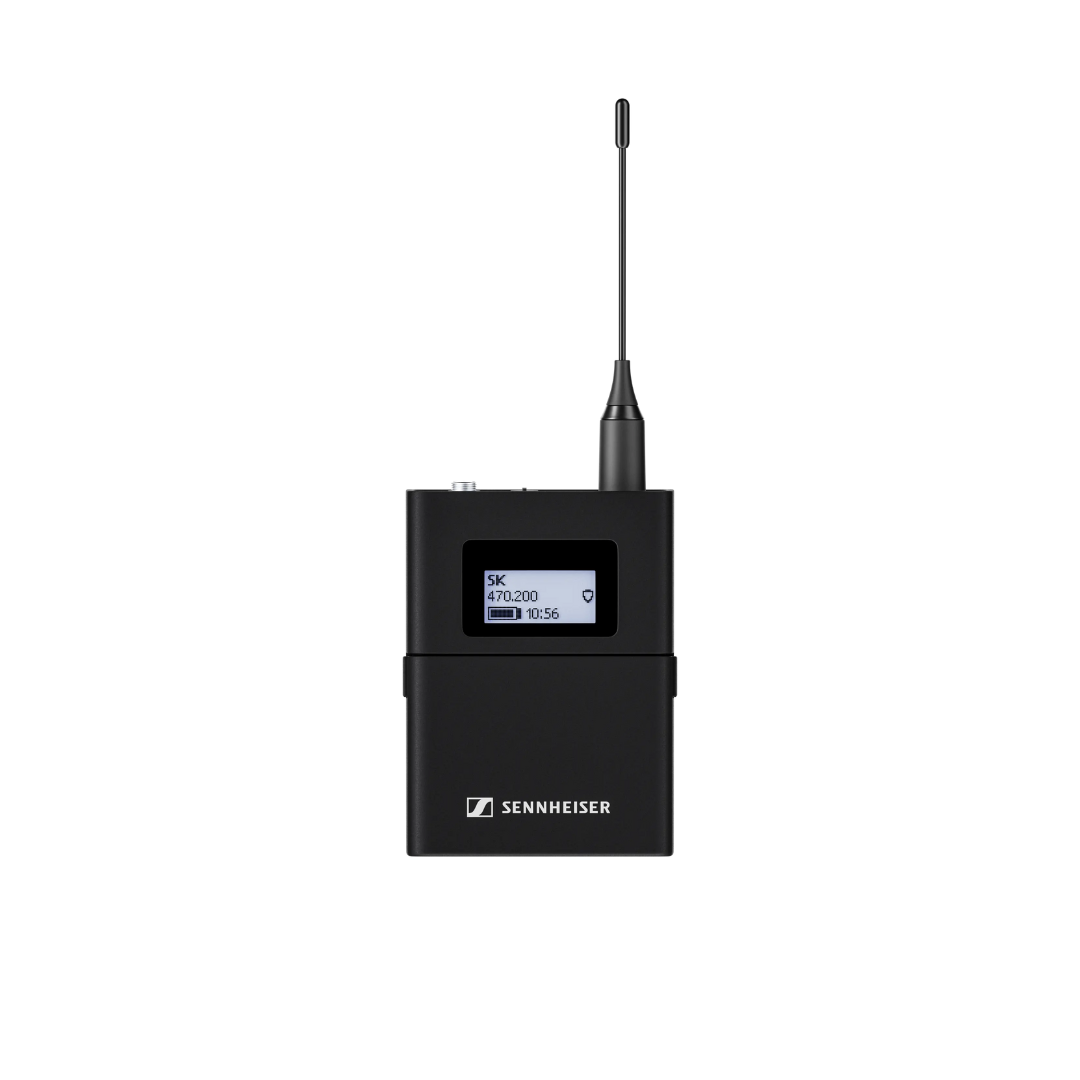

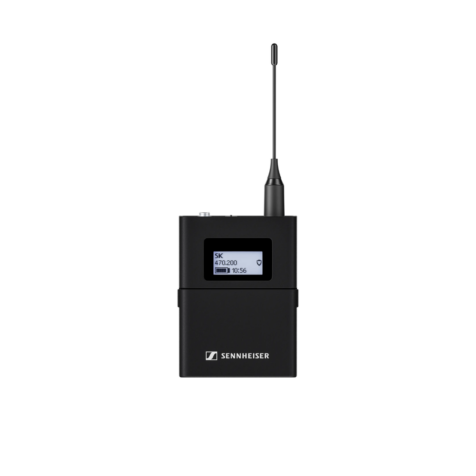

Sennheiser EW-DX SK Digital Wireless Bodypack Transmitter, R1-9 with 3.5 mm jack connector - 509385

Sennheiser EW-DX SK Digital Wireless Bodypack Transmitter, R1-9 with 3.5 mm jack connector – 509385

Features:

134 dB input dynamic range – no gain adjustment needed
Locking 3.5 mm TRS connector for secure mic or instrument connection
Persistent E-Ink display – visible even when powered off
Up to 12 hours of runtime with BA 70 rechargeable battery (sold separately)
Charging contacts for in-device charging via CHG 70N dock
Programmable mute switch – RF mute, AF mute, or disabled
Bluetooth sync with EW-DX receivers for fast pairing
Rugged metal housing for daily professional use
Global compatibility (subject to local RF regulations)

For Special Order. Please contact our sales team for the price.

SKU: TLZ-615104362109 Categories: Microphones, Wireless Transmitters Product ID: 31720

Description

Built for performance. Engineered for control.

The Sennheiser EW-DX SK is a professional-grade digital wireless bodypack transmitter designed for seamless integration with the Evolution Wireless Digital (EW-DX) system. Operating in the R1-9 UHF band (520–607.8 MHz), this transmitter features a locking 3.5 mm jack connector, making it compatible with a wide range of Sennheiser lavalier and headset microphones.

Specifications:

134 dB input dynamic range – no need to set gain on your wireless transmitters at all, thanks to proprietary Sennheiser Performance Audio Codec (SePAC)134 dB input dynamic range – no need to set gain on your wireless transmitters at all, thanks to proprietary Sennheiser Performance Audio Codec (SePAC)
10mW fixed RF power for up to 100 m/328 ft of range
Charging contacts for in-device charging with CHG 70N charger (sold separately)
Persistent E-Ink display for “always on” information – parameters visible on screen even when taking out batteries
Up to 12 hours of operation time with rechargeable lithium ion battery BA 70 (sold separately)
Function buttons – control all the transmitter settings directly from bodypack including button lock function
Programmable mute switch – RF mute, AF mute or disabled
Digital audio trim
Mic input trim control
Test tone generator
Switchable LED configuration (On/Off)
Switchable low cut (Off, 30 ,60, 80, 100, 120 Hz)
Instrument input with cable emulation to simulate cable characteristics
Versatile charging options optionally available: CHG 70 N, L 70 USB, LM 6070 Module for L 6000 full rack charging station (Availability in 2023)
Compatible with a wide range of Sennheiser lavalier and headset microphones with 3.5 mm jack plug connection
Metal housing
Worldwide usage (specific frequencies subject to local RF regulations)
Note: All components of the Evolution Wireless Digital Family are designed to interoperate. Please be aware of restrictions of features linked to the respective series, such as switching bandwidth and use of Link Density mode.
