Description
SPECIFICATION
Power consumption: 300W
Input voltage: AC 90V-240V,50-60Hz
Working position: any safe working position
Working position temperature: -10-40deg
Light source: High power LED 200W white lamp
CCT: 8000K
Lifetime : >60,000hours
FEATURES
Color wheels: 14 colors +Open
Static gobo wheel: 13 fixed metal gobos + Open
Prism: 8-facet circular rotating prism
Beam: 2° beam
Dimmer: 0-100% linear dimming system
Frost: linearly adjustable frost
Focus: linearly adjustable focus
MOTORIZED
Pan/Tilt
Pan movement range: 540°
Tilt movement range: 270°
8bit/16bit movement solution, optional
Automatic Pan/Tilt position correction
CONTROL
Display: LCD display
DMX Channel: 10/16 CHs
Control mode: Master /Slave synchronization, Stand-alone
mode and DMX512 control
CONSTRUCTION
Data in/out socket: 3pin+5pin DMX XLR
Power connector: PowerCon In/out
Protection rate: IP20, for indoor use
Housing: heat-proof plastic module + hard metal ; black
PHYSICAL
Dimension: 380x247x550mm
Net weight: 15kgs

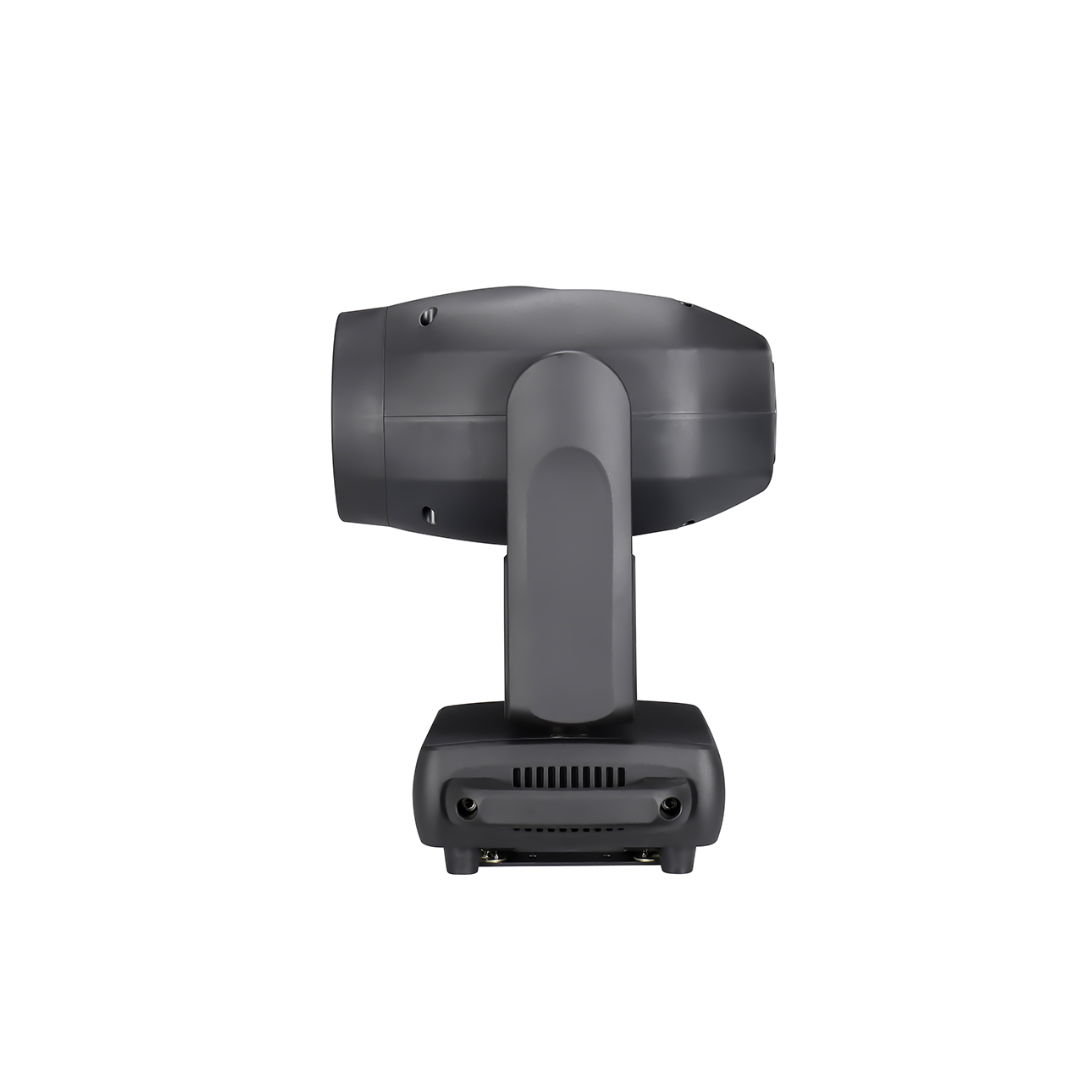

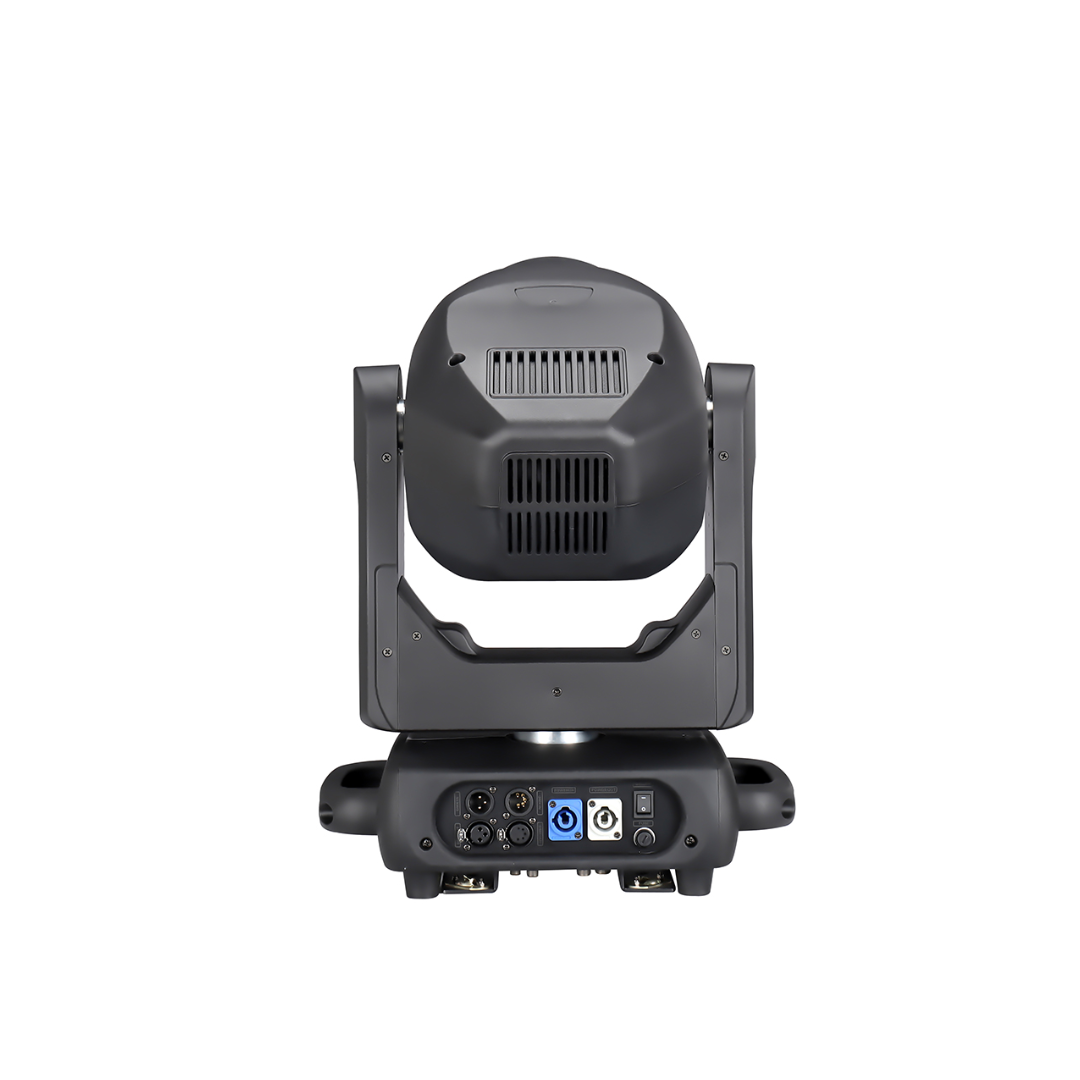

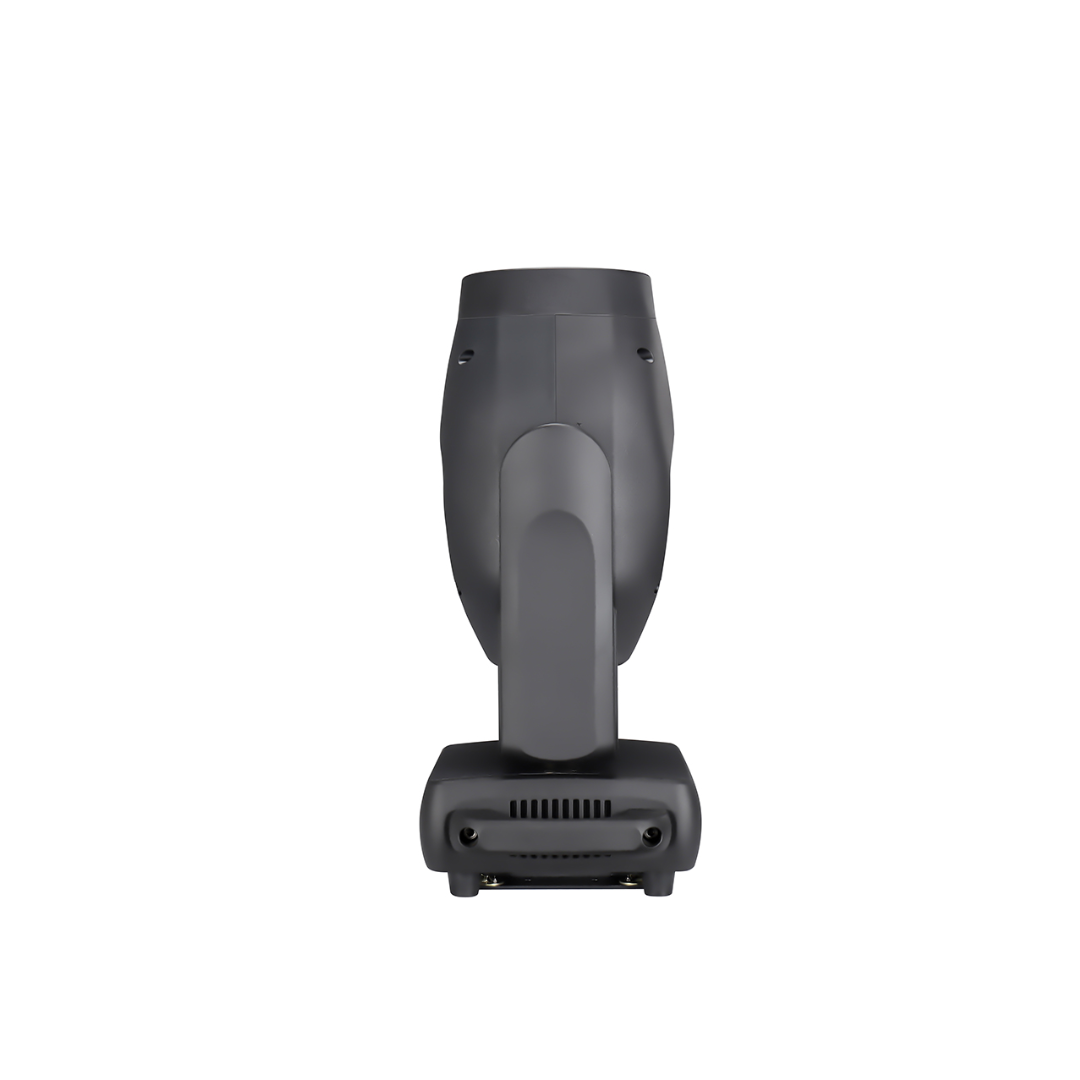

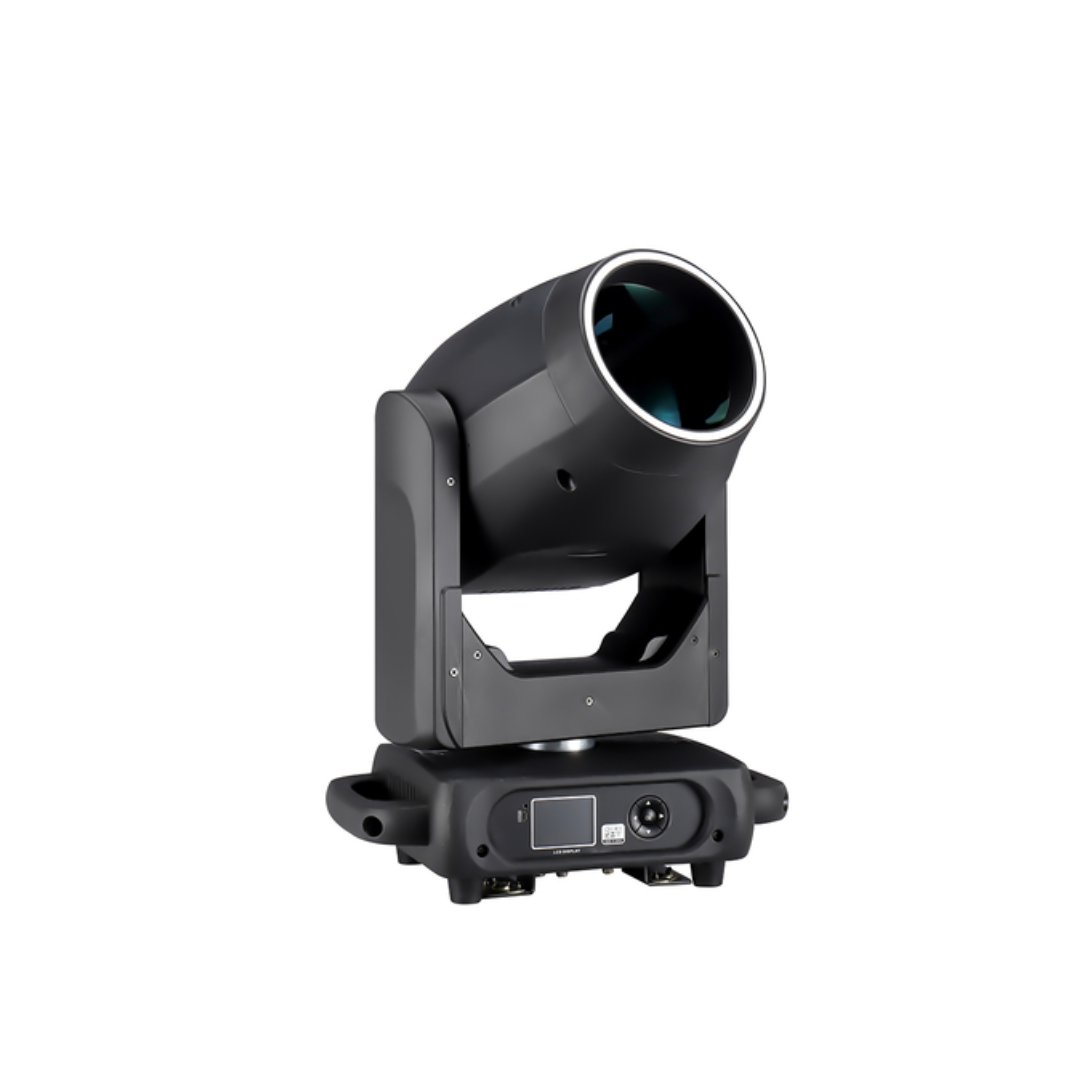

Product Drawing
