Description

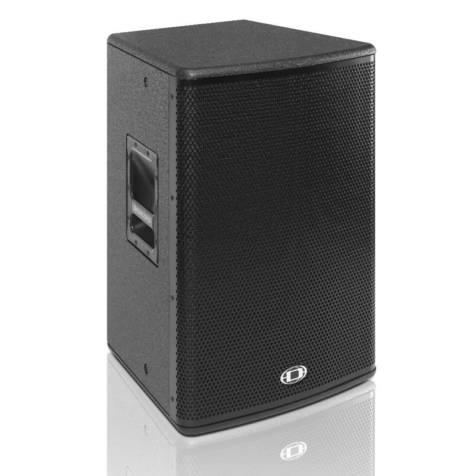

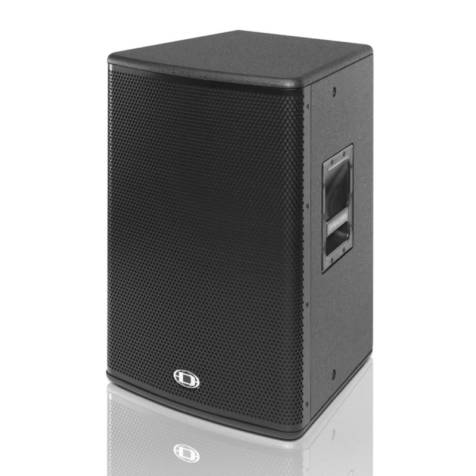

In the C 15.2, DYNACORD is offering an extremely compact, trapezoidal 15″ two-wayfull-range cabinet boasting very good power handling (500 W continuous / 2000 W peak) and sensitity of 100 dB 1W / 1m for applications requiring an extended low end. Here, an SMX 2151 woofer is used, whilst in the high frequency range, a DH3 compression driver into a 90° x 50° constant irectivity horn transduces everything above 1550 Hz. Flying points for eyebolts are provided to permit either vertical or horizontal suspension. Also available as an option is the DC-MBC15-UMH mounting bracket, which is compatible with the DYNACORD PI-Easy mounting system and supports up to three levels of orientation. To extend the low bass performance, a Sub 1.18 subwoofer connected in parallel is recommended. This combination is also ideal for an active two-way system together with the DSP 260 or DSP 600 controllers and power amplifiers from the SL series.
| SPECIFICATIONS | |
|---|---|
| Order No. | F01U165092 |
| Cabinet | Fullrange |
| Configuration | Passive 2-Way |
| Nominal impedance | 8 Ohms |
| Minimum Impedance | 5.3 Ohms |
| Rated Power RMS | 500 W |
| Peak Power | 2000 W |
| Sound pressure level | |
| SPL 1 W / 1 m | 100 dB |
| Max. SPL 1m (calculated with peak power) | 133 dB |
| Frequency Range (-10 dB) | 55 Hz to 20 kHz |
| Nominal Coverage Angle (Horizontal x Vertical) | 90° x 50° |
| X-Over Frequency | 1550 Hz |

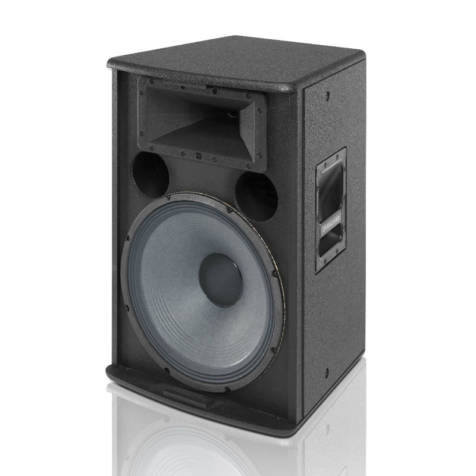

| LF Transducer | SMX2151, 15″ (381 mm) Driver |
| HF Transducer | DH3, 1.25″ (32mm) Diaphragm CompressionDriver |

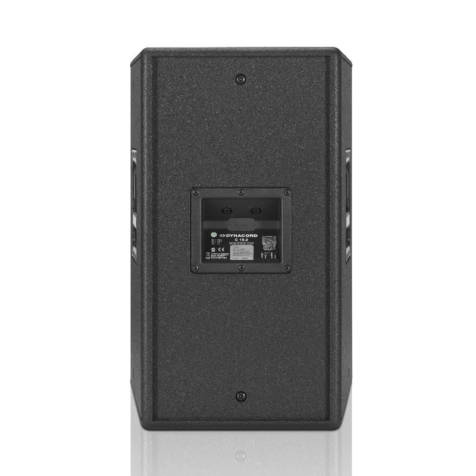

| Connectors | 2x Neutrik Speakon NL4 Full-Range 1+ / 1- Wired through 2+ / 2- |
| Dimensions (W x H x D) | 445 mm x 660 mm x 445 mm (17.5″ x 26.0″ x 17.5″)” |
| Net Weight | 28.3 kg (62.4 lbs) |
| Shipping Weight | 31.8 kg (70.1 lbs) |
| Enclosure material | MDF with D-PUR PLUS |
| Grille | Steel, Black Finish with Acoustic Gauze |
| Suspension | 3x M8 threaded Points – 1x on Each Side and 1x on the Rear of Enclosure” |
| Warranty | 5 years |
| Optional Accessories | |
| DC-MBC15-UMH | F01U169671 |
| TMA Tilt Angle for UMH | F01U118977 |
| RMA Rotatable Mounting kit | F01U118976 |
| TC-02 Truss clamp | F01U100657 |
| EBK-M8 Eye Bolt Kit | F01U166797 |
| Spare Parts | |
| LF Transducer | F01U134309 |
| HF Transducer | F01U103119 |
