Description
SPECIFICATION:
Power consumption: 600W
Input voltage: AC 90V-240V,50-60Hz
Working position: any safe working position
Working position temperature: -10-40 °
Light source: TW high power 4in1 RGBW 40WX19pcs
Lifetime: >100,000hours
CTO: 2700K-8000K, 8-class color temperatures adjustment
Electronic zoom range: 6 ° -50 °
Motor: Two speedy 3-phase motors for Pan/Tilt
Pan movement range: 540°
Tilt movement range: 310°
CONTROL
Display: LCD display
DMX Channel: 16/28 DMX
Pixel Control: Dot matrix in 3 circles
Control mode: Master /Slave synchronization, Stand-alone
mode and DMX512 control
CONSTRUCTION
DMX link: 3pin DMX in and out
Power link: Powercon In and out
Protection rate: IP20, for indoor use
Housing: heat-proof plastic module + hard metal, black
PHYSICAL
Dimension: 362X240X500mm
Net Weight: 14.2kgs
Gross Weight: 17.5kgs

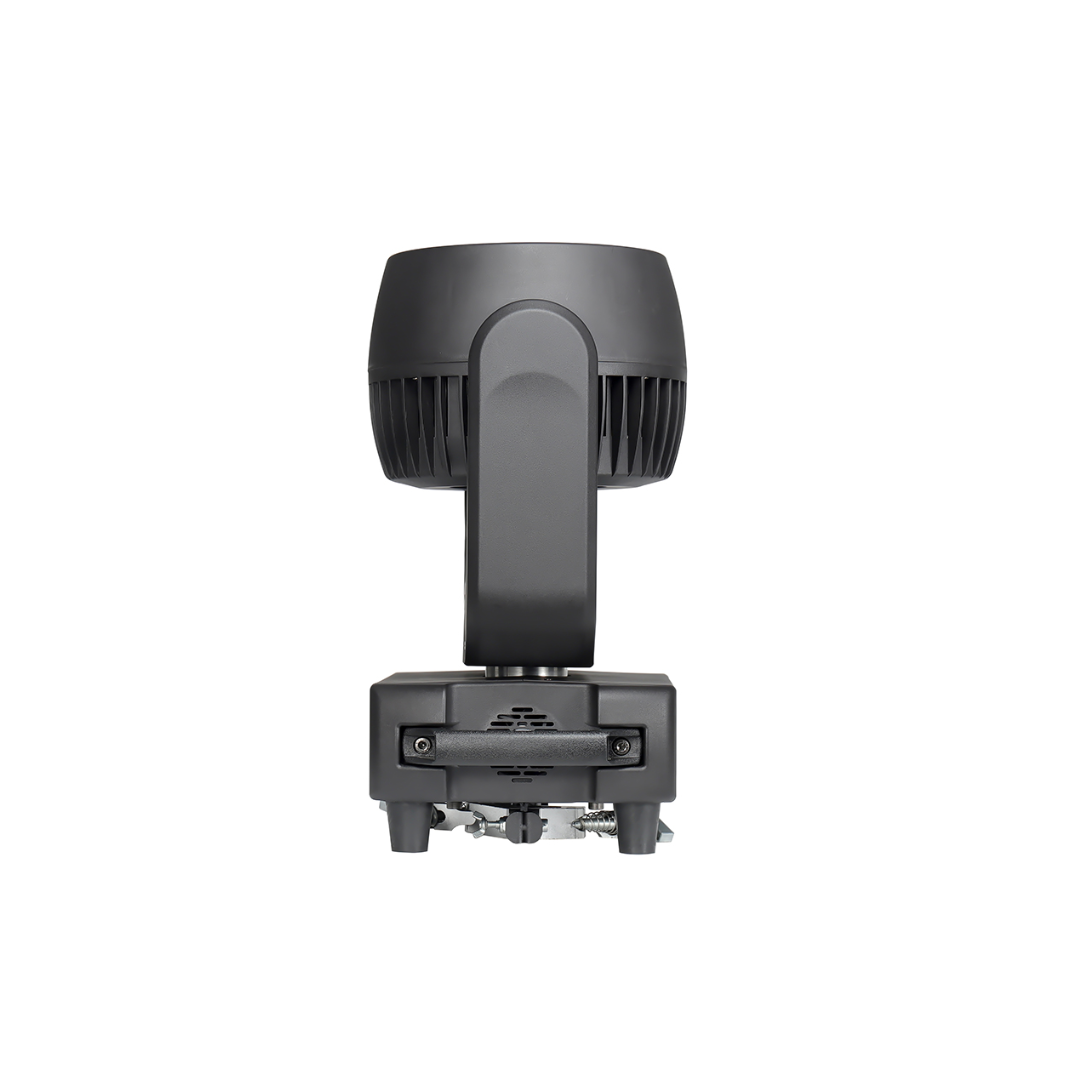

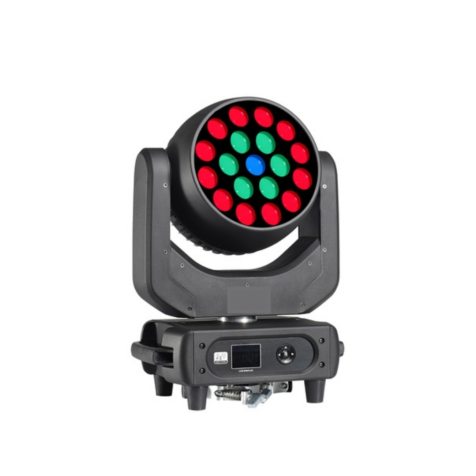

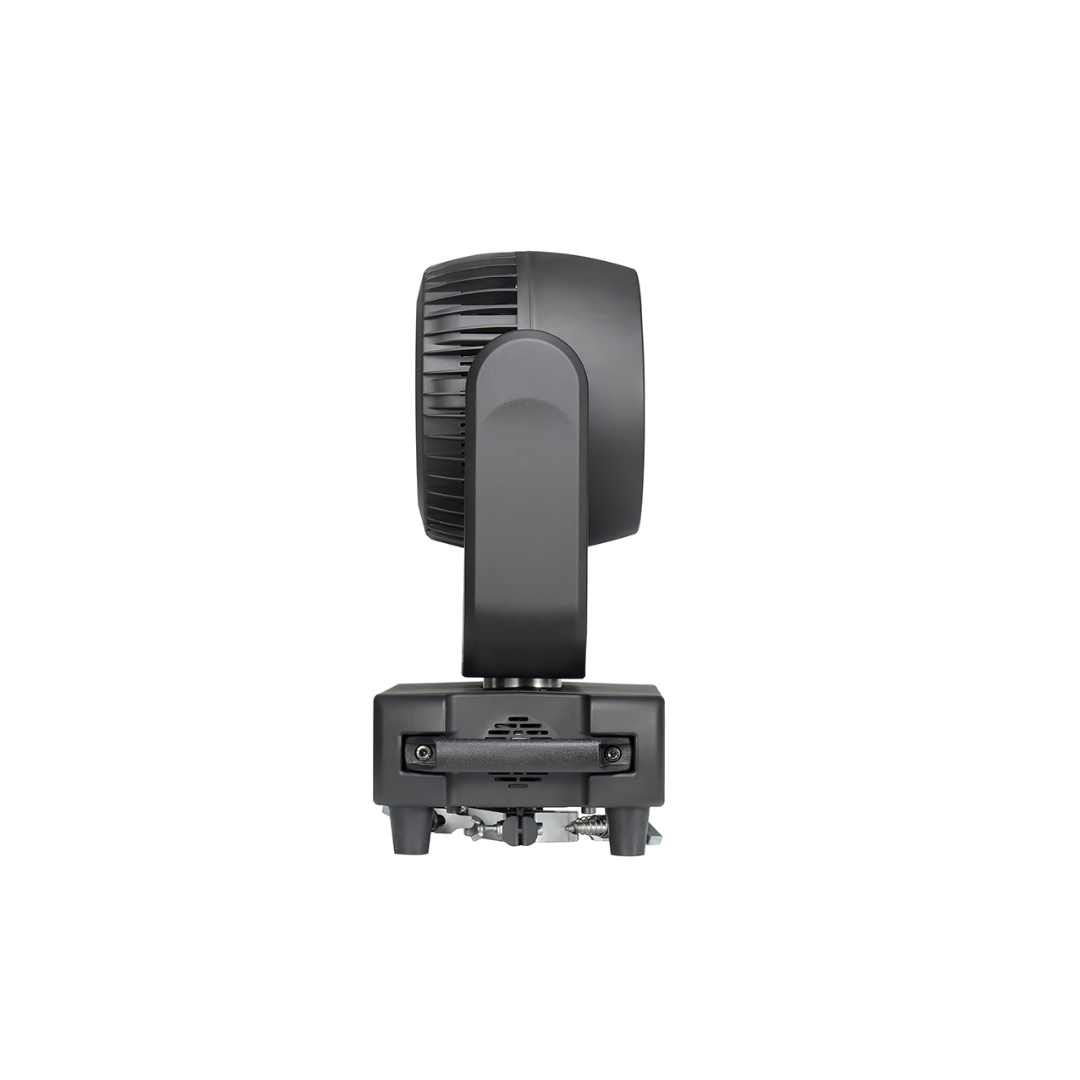

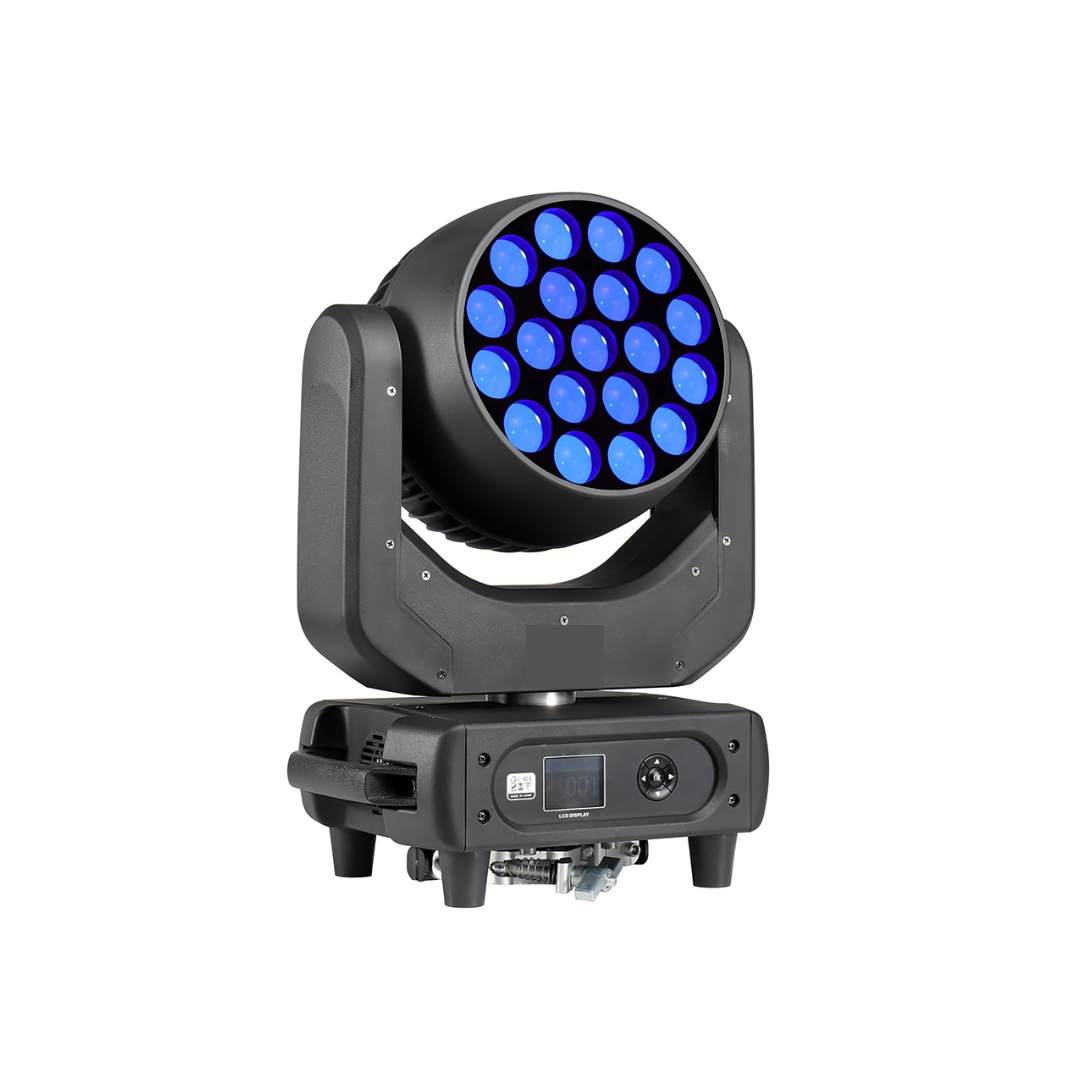

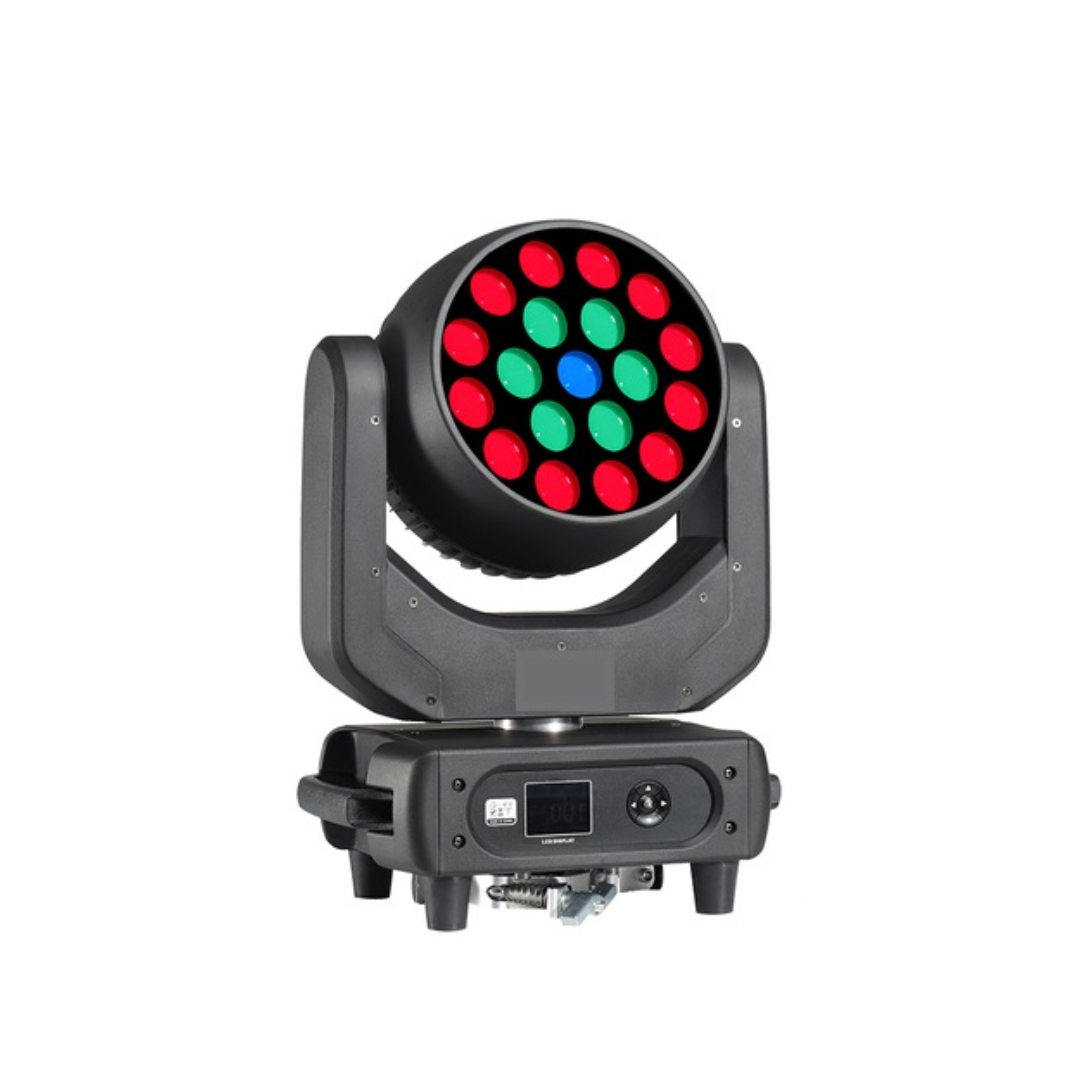

Product Drawing
