Description

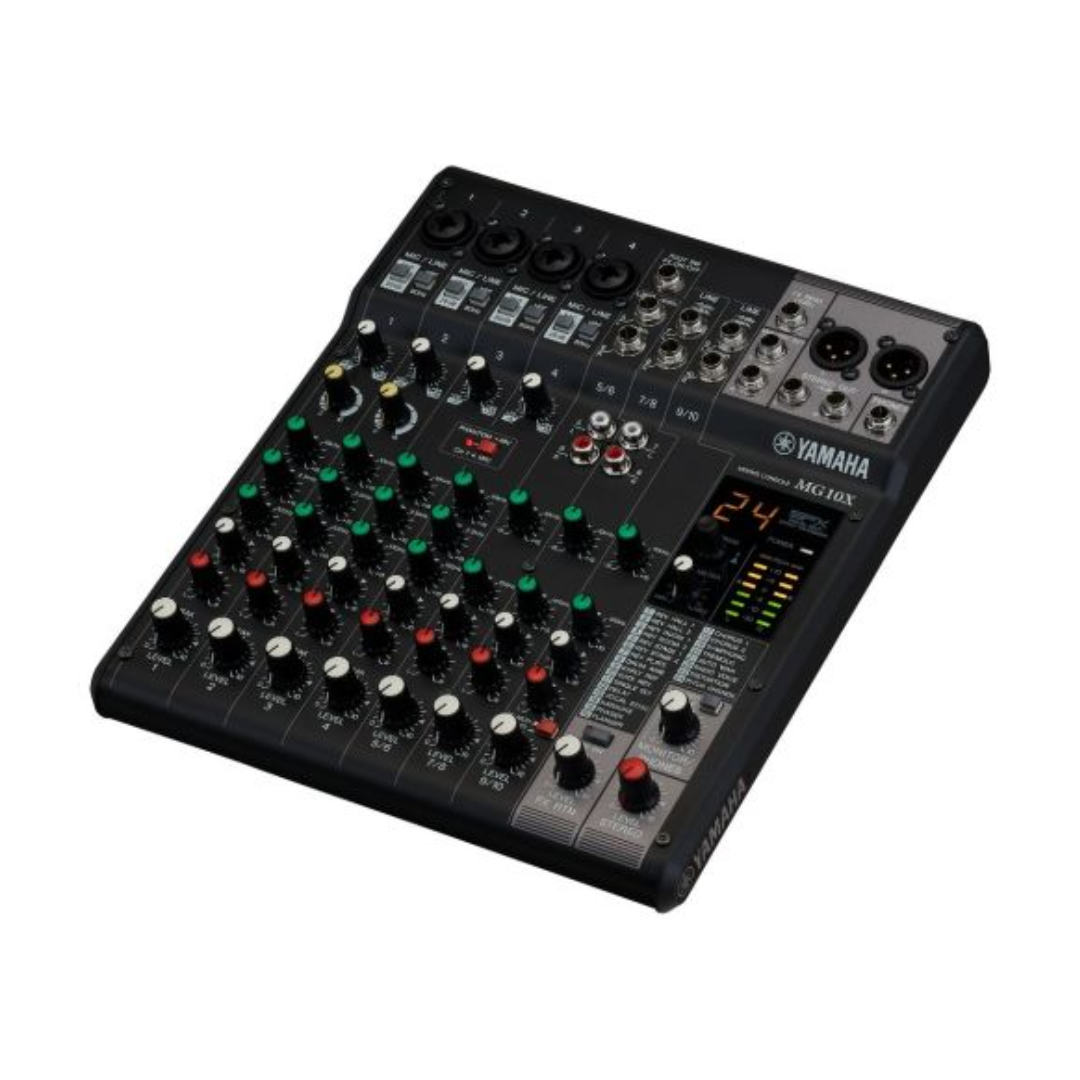

The Yamaha MG10X CV is a versatile 10-channel stereo mixer designed for both live and studio applications. This mixer is ideal for a range of settings, from live performances to recording sessions, providing reliable and high-quality audio performance.
Specs
| On-board processors |
SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off) |
| Mono[MIC/LINE] |
4 |
| Stereo[LINE] |
3 |
| STEREO OUT |
2 |
| MONITOR OUT |
1 |
| PHONES |
1 |
| AUX SEND |
1 |
| PAD |
26 dB (Mono) |
| HPF |
80 Hz, 12 dB/oct (Mono) |
| COMP |
1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec |
| EQ HIGH |
Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving |
| EQ MID |
Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking |
| EQ LOW |
Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving |
| PEAK LED |
LED turns on when post EQ signal reaches 3 dB below clipping |
| Level Meter |
2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB] |
Total harmonic distortion
| 0.02 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +24dBu (1kHz), GAIN knob: Min |
| +0.5 dB/-1.0 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min |
| Equivalent input noise |
-128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max) |
| Residual output noise |
-102 dBu (STEREO OUT, STEREO LEVEL knob: Min) |
| PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha |
| W |
244 mm (9.6″) |
| H |
71 mm (2.8″) |
| D |
294 mm (11.6″) |
| Included Accessory: AC Adaptor, Owner’s Manual, Technical Specifications, Optional Accessory: Mic Stand Adaptor BMS-10A, Foot Switch FC5 |
| Operating Temperature: 0 to +40˚C |
