Description

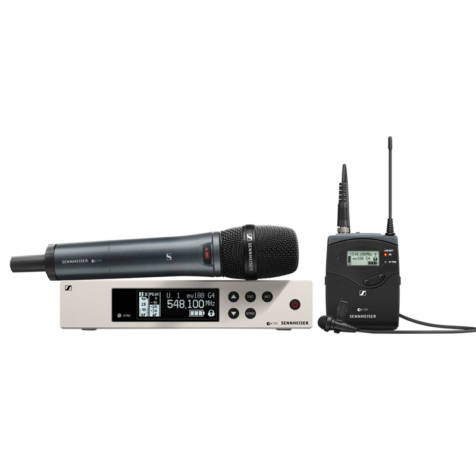

Sennheiser EW 100 series combo set is a versatile wireless system for those who sing, speak or play instruments. Get it today at Talentz Oman! Set includes a dynamic handheld e 835 and easy clip-on omni-directional mic.
Versatile wireless systems for those who sing, speak or play instruments with up to 42 MHz tuning bandwidth in a stable UHF range and fast, simultaneous setup of up to 12 linked systems. Dynamic handheld microphone e 835, robust bodypack transmitter and easy clip-on microphone ME 2-II (omni-directional) with high speech intelligibility for daily use on stage.
Reliability and performance
When taking any stage, large or small, a presenter needs to have just as much confidence in their equipment as they do in themselves. The ability to rely on technology is just as much a factor as the content itself when it comes to delivering a message to an audience. Enter the evolution wireless G4 100 Seriesa wireless system built on the need for dependability that continues to deliver for presenters and A/V technicians time and time again.
Feature-rich and built to last
The evolution wireless G4 100 Series is packed with features that make it possible to get you up and running fast and efficiently. Use the Easy Setup function to automatically scan and select the best frequencies around you and take full advantage of the UHF spectrum. With up to 100 meters of range and a battery life of 8 hours, its easy to see how the durably constructed ewG4 transmitters and receivers will perform when you need them to.
Differences between the sets
The ME2, ME3 and ME4 are all great set options and vary depending on your needs. While the EW 100 G4-ME2 features our classic ME 2-II omnidirectional lavalier microphone, the ME4 offers a cardioid lavalier microphone in its place. The ME3 features the ME 3-II cardioid head-worn microphone which is ideal for getting the microphone capsule closer to the sound source in noisy or reverberant rooms. Lastly, the ME2/835-S is a combo set for those that need to switch between an omnidirectional lavalier and a cardioid handheld microphone depending on their application.
What’s in the Box
- EM 100 G4
- SK 100 G4
- SKM 100-S G4
- MMD 835-1
- ME 2
- MZQ 1 microphone clamp
- power supply
- 4 AA batteries
- 2 rod antennas
- RJ 10
- quick guide
- safety guide
- manufacturer declaration sheet
- frequency supplement sheet
- rackmount set
SPECIFICATIONS
- Frequency range: B: 626 – 668 MHz
- Dimensions: Approx. 190 x 212 x 43 mm
- Compander: Sennheiser HDX
- THD, total harmonic distortion: ≤ 0.9 %
- Weight: Approx. 980 g
- Audio output: 6.3 mm jack socket (unbalanced): +12 dBu
- XLR socket (balanced): +18 dBu
- Signal-to-noise ratio: ≥ 110 dBA
- Switching bandwidth: up to 42 MHz
- Peak deviation: ±48 kHz
- Nominal deviation: ±24 kHz
- Modulation: Wideband FM
- Power supply: 12 V DC
- Antenna connector: 2 BNC sockets
- Current consumption: 300 mA
- Adjacent channel rejection: Typically ≥ 65 dB
- Intermodulation attenuation: Typically ≥ 65 dB
- Receiving frequency: Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
- RF sensitivity: < 2.5 µV for 52 dBA eff S/N
- Squelch low: 5 dBµV middle: 15 dBµV high: 25 dBµV
- Preset 1: Flat
- Preset 2: Low Cut (-3 dB at 180 Hz)
- Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
- Preset 4: High Boost (+6 dB at 10 kHz)
- Temperature Range: -10 °C to +55 °C
- Receiver Principle: True diversity
- Blocking: ≥ 70 dB
